StealthHook - 一种在不修改内存保护的情况下挂钩函数的方法

阅读量209435

发布时间 : 2023-01-04 10:30:12



作者:The_Itach1@知道创宇404实验室
日期:2022年12月23日

最近看了一下x86matthew关于hook方法的一篇文章https://www.x86matthew.com/view_post?id=stealth_hook,相对于传统的一些hook方式,个人认为StealthHook的最大优点并不在于不修改内存保护,而是其隐蔽性,这种hook方式是难以检测的,因为其没有直接作用于目标函数。

此hook方式,实际上并没有去hook目标函数,而是通过目标函数内的子函数,去获取了进入目标函数时,栈上保存的返回地址,通过修改这个地址,即可劫持执行流程,在函数返回前,执行我们的代码。

hook样例-CreateFile

下面是其给出的例子。

#include <stdio.h>
#include <windows.h>

DWORD dwGlobal_OrigCreateFileReturnAddr = 0;
DWORD dwGlobal_OrigReferenceAddr = 0;

void __declspec(naked) ModifyReturnValue()
{
    // the original return address for the CreateFile call redirects to here
    _asm
    {
        // CreateFile complete - overwrite return value
        mov eax, 0x12345678

        // continue original execution flow (ecx is safe to overwrite at this point)
        mov ecx, dwGlobal_OrigCreateFileReturnAddr
        jmp ecx
    }
}

void __declspec(naked) HookStub()
{
    // the hooked global pointer nested within CreateFile redirects to here
    _asm
    {
        // store original CreateFile return address
        mov eax, dword ptr [esp + 0x100]
        mov dwGlobal_OrigCreateFileReturnAddr, eax

        // overwrite the CreateFile return address
        lea eax, ModifyReturnValue
        mov dword ptr [esp + 0x100], eax

        // continue original execution flow
        mov eax, dwGlobal_OrigReferenceAddr
        jmp eax
    }
}

DWORD InstallHook()
{
    BYTE *pModuleBase = NULL;
    BYTE *pHookAddr = NULL;

    // get base address of kernelbase.dll
    pModuleBase = (BYTE*)GetModuleHandle("kernelbase.dll");
    if(pModuleBase == NULL)
    {
        return 1;
    }

    // get ptr to function reference
    pHookAddr = pModuleBase + 0x1DF650;

    // store original value
    dwGlobal_OrigReferenceAddr = *(DWORD*)pHookAddr;

    // overwrite ptr to call HookStub
    *(DWORD*)pHookAddr = (DWORD)HookStub;

    return 0;
}

int main()
{
    HANDLE hFile = NULL;

    // create temporary file (without hook)
    printf("Creating file #1...\n");
    hFile = CreateFile("temp_file_1.txt", GENERIC_WRITE, 0, NULL, CREATE_ALWAYS, FILE_ATTRIBUTE_NORMAL, NULL);
    printf("hFile: 0x%X\n\n", hFile);

    // install hook
    printf("Installing hook...\n\n");
    if(InstallHook() != 0)
    {
        return 1;
    }

    // create temporary file (with hook)
    printf("Creating file #2...\n");
    hFile = CreateFile("temp_file_2.txt", GENERIC_WRITE, 0, NULL, CREATE_ALWAYS, FILE_ATTRIBUTE_NORMAL, NULL);
    printf("hFile: 0x%X\n\n", hFile);

    return 0;
}

上面的代码的作用就是钩取了CreatFile这个API函数,修改了其返回值为0x12345678,具体步骤如下。

  • Hook了kernelbase.dll+0x1DF650处的函数,这个函数是CreatFile内部会调用的一个子函数。
  • 在这个子函数执行前,将栈上CreatFile原本的返回地址保存下来,也就是[esp+0x100]的值,然后替换成了我们自己的函数ModifyReturnValue。
  • 子函数执行。
  • 最终会执行CreatFile函数最后的ret指令,但是此时栈上的返回地址以被修改,所以会先执行我们的函数,修改了eax,也就是返回值变成了0x12345678。
  • 最后mov eax, dwGlobal_OrigReferenceAddr jmp eax,回到真正的返回地址处。

下面来调试一下过程。

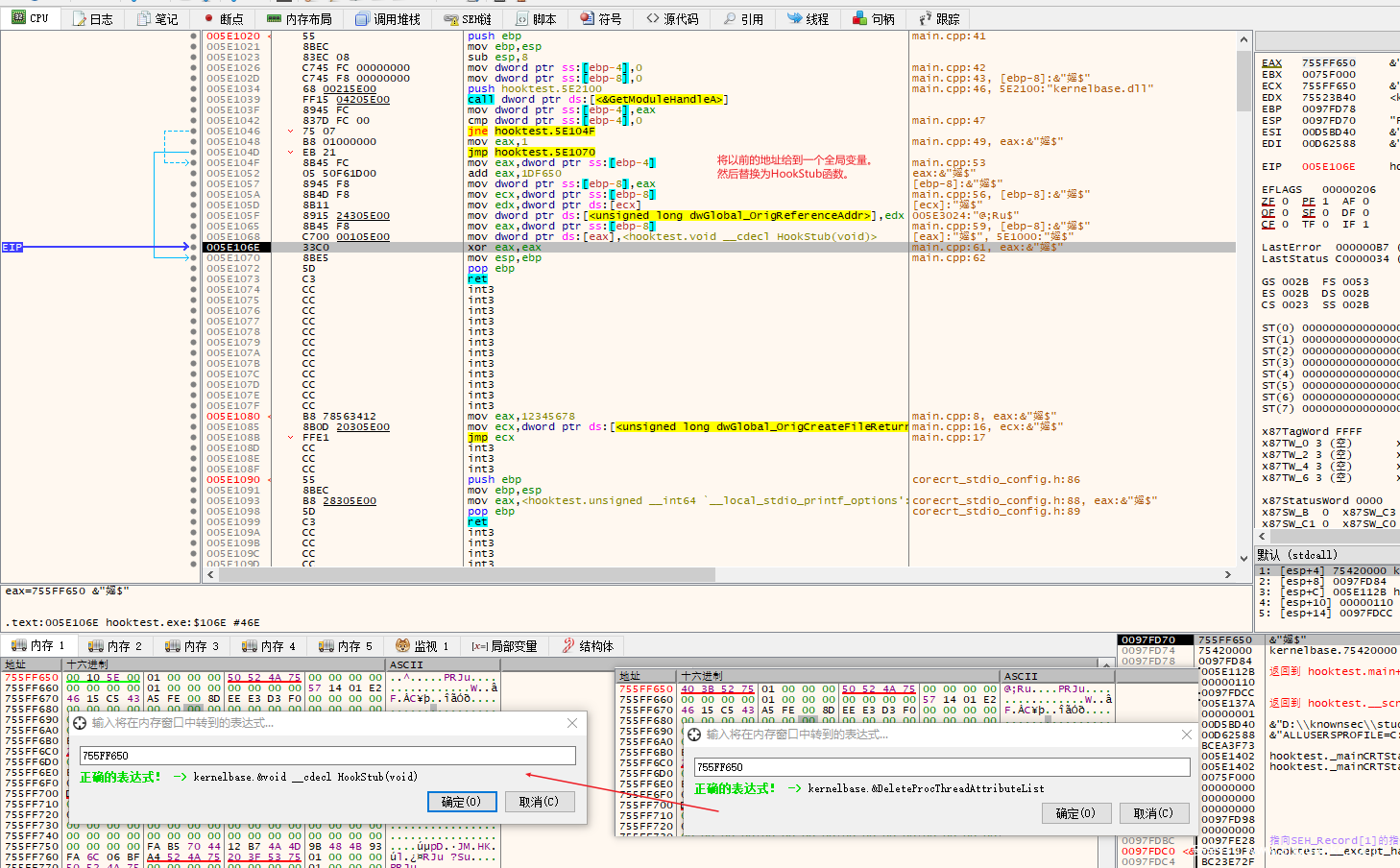

先是InstallHook()内部,Hook了一个子函数,其获取EAT中了某一子函数的地址,并且将其替换为了HookStub。

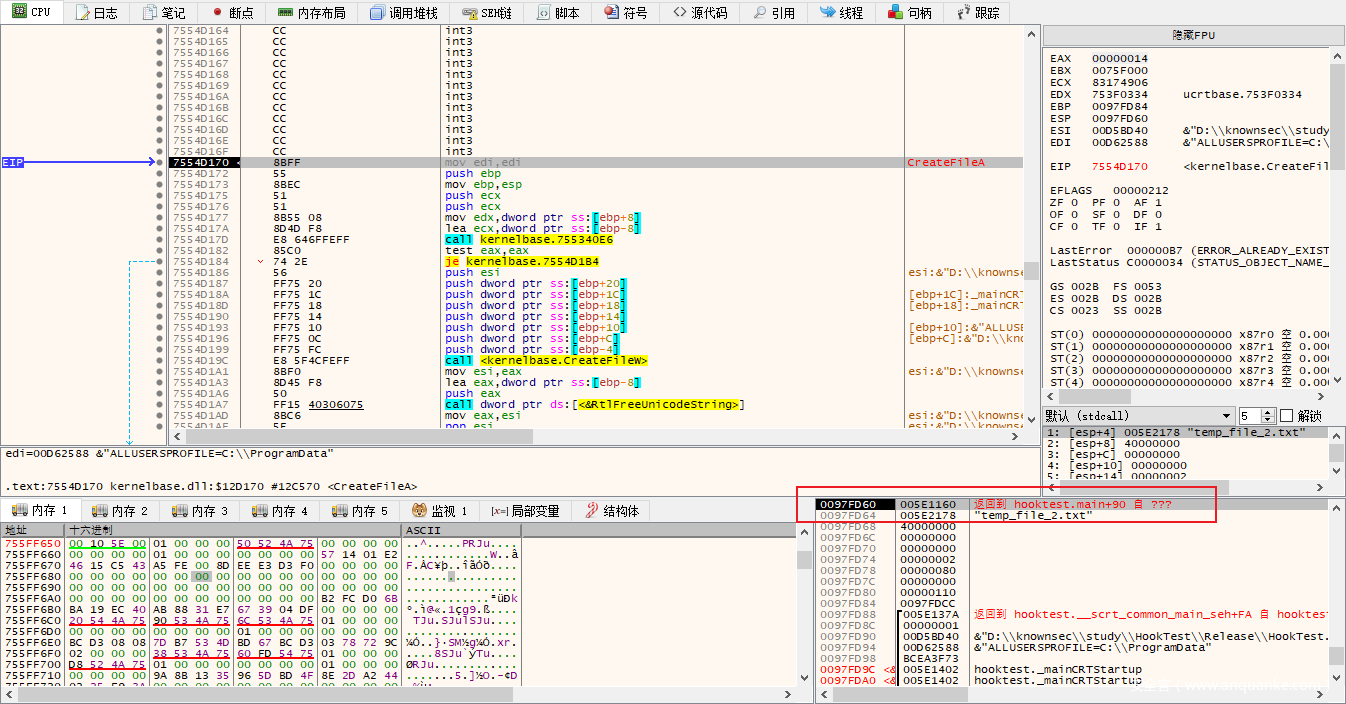

然后到第二次调用CreateFile的开头,我们查看一下,这时候ESP存放的返回地址是多少,实际上等下这里的值是会被修改的。

接着,我们本来会调用CreateFile内部的一个子函数,但是其已被我们hook现在变成了HookStub()函数,我们在HookStub()打断点,发现其对栈偏移100处进行了修改,这个地址保存的就是原CreateFile返回到main函数的返回地址。

HookStub()内部将栈上的地址先进行保存到全局变量,然后修改为了我们自己的一个函数,最后jmp到真正的子函数处。

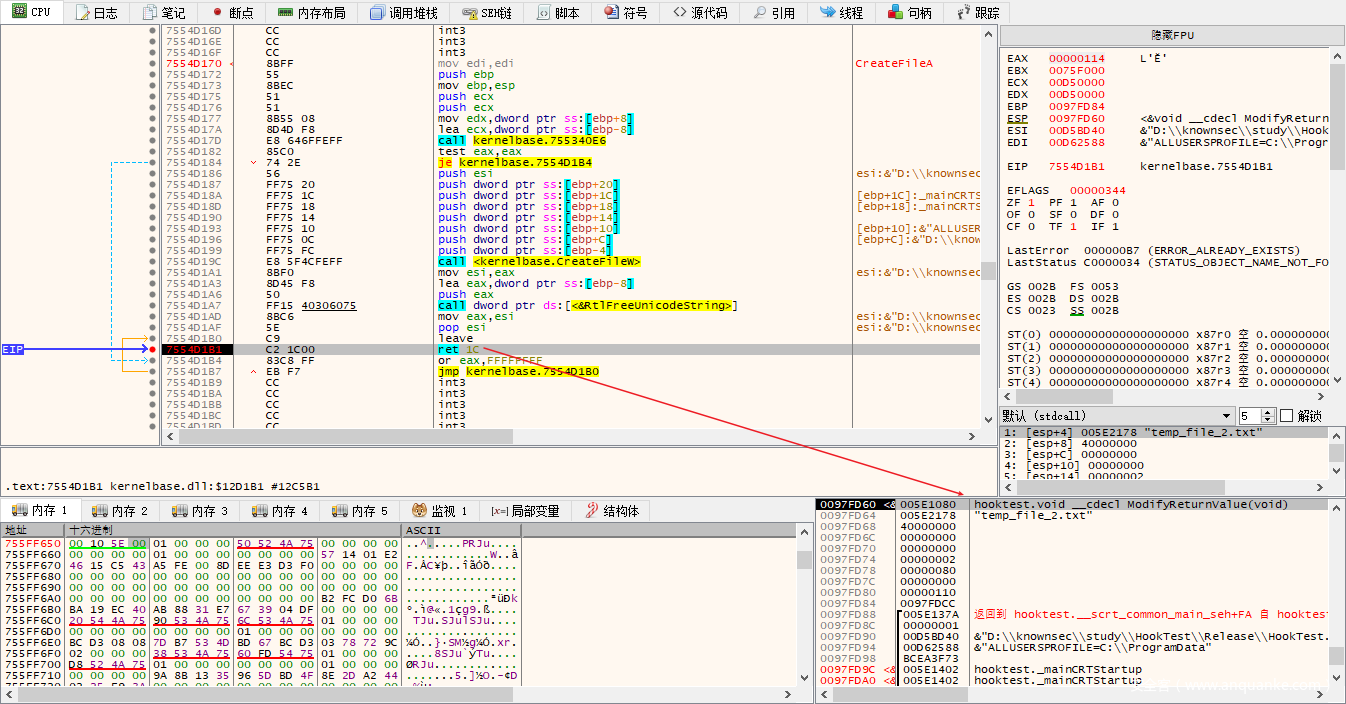

然后在CreatFile函数内部最后的ret指令处打个断点,发现返回地址已被修改,不会跳转到main函数了,而是跳转到ModifyReturnValue()。

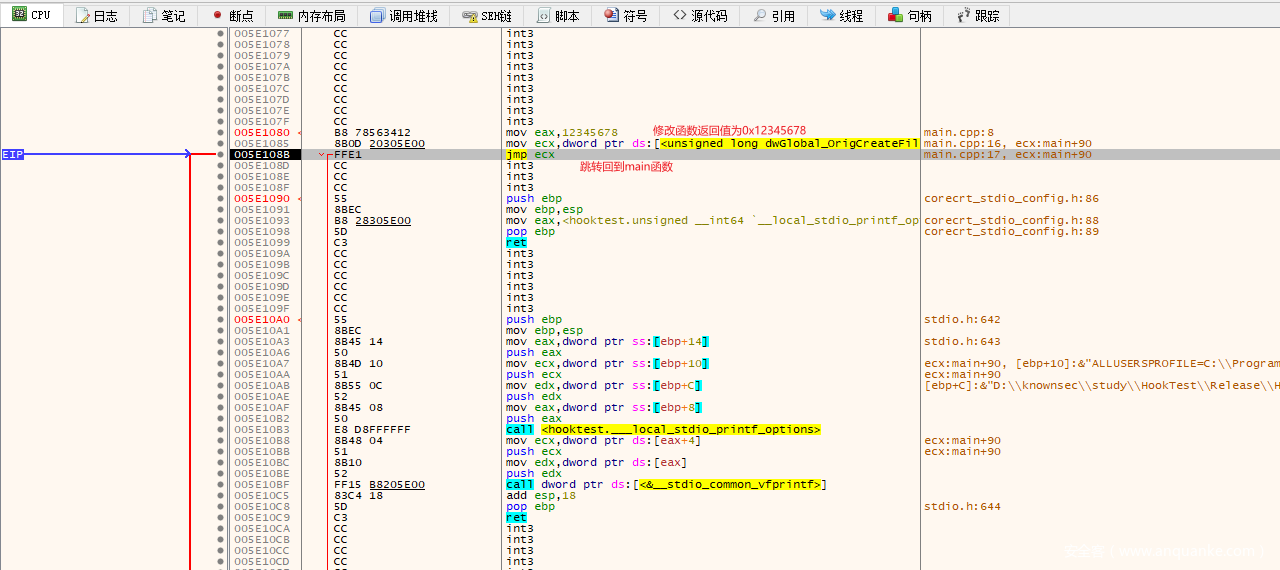

进入ModifyReturnValue(),发现其就是对eax(函数返回值)进行了修改,然后跳转到真正应该返回的地址。

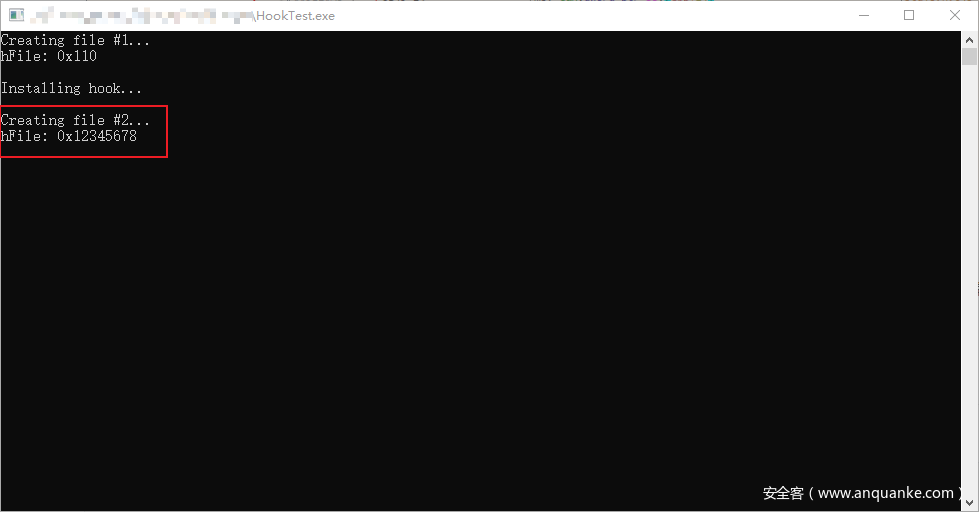

最后结果如下,hook后,调用CreatFile函数的返回值会被修改为0x12345678。

整个过程还是比较清晰,也不是很复杂的hook过程,问题就在于,如何获取到子函数的地址,以及到目标函数的返回地址的栈偏移是多少,因为我们不可能自己去一个一个调试获取。

为了解决这个问题,x86matthew师傅开发了一款工具,用来获取可用的子函数地址,以及栈偏移。



StealthHook工具

其先是注册了一个异常处理函数,用来处理EXCEPTION_SINGLE_STEP异常和EXCEPTION_ACCESS_VIOLATION异常。

LONG WINAPI ExceptionHandler(EXCEPTION_POINTERS* ExceptionInfo)
{
    NATIVE_VALUE dwReturnAddress = 0;

    // check exception code
    if (ExceptionInfo->ExceptionRecord->ExceptionCode == EXCEPTION_SINGLE_STEP)
    {
        if (dwGlobal_TraceStarted == 0)
        {
            //打在目标函数的硬件断点和此时的eip是否一致
            if (CURRENT_EXCEPTION_INSTRUCTION_PTR != ExceptionInfo->ContextRecord->Dr0)
            {
                return EXCEPTION_CONTINUE_SEARCH;
            }

            //获取当前ESP寄存器的值
            dwGlobal_InitialStackPtr = CURRENT_EXCEPTION_STACK_PTR;

            //返回地址处打硬件断点
            ExceptionInfo->ContextRecord->Dr1 = *(NATIVE_VALUE*)dwGlobal_InitialStackPtr;

            // initial trace started
            dwGlobal_TraceStarted = 1;
        }

        // set debug control field
        ExceptionInfo->ContextRecord->Dr7 = DEBUG_REGISTER_EXEC_DR1;

        // check current instruction pointer
        if (CURRENT_EXCEPTION_INSTRUCTION_PTR == dwGlobal_Wow64TransitionStub)
        {
            // we have hit the wow64 transition stub - don't single step here, set a breakpoint on the current return address instead
            dwReturnAddress = *(NATIVE_VALUE*)CURRENT_EXCEPTION_STACK_PTR;
            ExceptionInfo->ContextRecord->Dr0 = dwReturnAddress;
            ExceptionInfo->ContextRecord->Dr7 |= DEBUG_REGISTER_EXEC_DR0;
        }
        else if (CURRENT_EXCEPTION_INSTRUCTION_PTR == ExceptionInfo->ContextRecord->Dr1)
        {
            //到达返回地址后,删除所有断点
            ExceptionInfo->ContextRecord->Dr7 = 0;
        }
        else
        {
            // scan all modules for the current instruction pointer
            ScanAllModulesForAddress(CURRENT_EXCEPTION_INSTRUCTION_PTR, CURRENT_EXCEPTION_STACK_PTR);

            // single step
            ExceptionInfo->ContextRecord->EFlags |= SINGLE_STEP_FLAG;
        }

        // continue execution
        return EXCEPTION_CONTINUE_EXECUTION;
    }
    else if (ExceptionInfo->ExceptionRecord->ExceptionCode == EXCEPTION_ACCESS_VIOLATION)
    {
        // access violation - check if the eip matches the expected value
        if (CURRENT_EXCEPTION_INSTRUCTION_PTR != OVERWRITE_REFERENCE_ADDRESS_VALUE)
        {
            return EXCEPTION_CONTINUE_SEARCH;
        }

        // caught current hook successfully
        dwGlobal_CurrHookExecuted = 1;

        // restore correct instruction pointer
        CURRENT_EXCEPTION_INSTRUCTION_PTR = dwGlobal_OriginalReferenceValue;

        // continue execution
        return EXCEPTION_CONTINUE_EXECUTION;
    }

    return EXCEPTION_CONTINUE_SEARCH;
}

先不看这个异常处理,后面具体分析。

先看BeginTrace()函数,这个函数的参数就是目标函数的地址。

DWORD BeginTrace(BYTE* pTargetFunction)
{
    CONTEXT DebugThreadContext;

    // reset values
    dwGlobal_TraceStarted = 0;
    dwGlobal_SuccessfulHookCount = 0;
    dwGlobal_AddressCount = 0;

    // set initial debug context - hardware breakpoint on target function
    memset((void*)&DebugThreadContext, 0, sizeof(DebugThreadContext));
    DebugThreadContext.ContextFlags = CONTEXT_DEBUG_REGISTERS;
    DebugThreadContext.Dr0 = (NATIVE_VALUE)pTargetFunction;
    DebugThreadContext.Dr7 = DEBUG_REGISTER_EXEC_DR0;
    if (SetThreadContext(GetCurrentThread(), &DebugThreadContext) == 0)
    {
        return 1;
    }

    // execute the target function
    ExecuteTargetFunction();

    return 0;
}

其在目标函数地址处,打上了硬件断点,这个异常会被我们自己的异常处理函数所捕获,获取了esp寄存器的值,并且在返回地址处又打了个硬件断点。

if (dwGlobal_TraceStarted == 0)
{
    //打在目标函数的硬件断点和此时的eip是否一致
    if (CURRENT_EXCEPTION_INSTRUCTION_PTR != ExceptionInfo->ContextRecord->Dr0)
    {
        return EXCEPTION_CONTINUE_SEARCH;
    }
    //获取当前ESP寄存器的值
    dwGlobal_InitialStackPtr = CURRENT_EXCEPTION_STACK_PTR;

    //返回地址处打硬件断点
    ExceptionInfo->ContextRecord->Dr1 = *(NATIVE_VALUE*)dwGlobal_InitialStackPtr;

    // initial trace started
    dwGlobal_TraceStarted = 1;
}

接着执行,ScanAllModulesForAddress()函数是用来扫描子函数的,其参数是当前eip和当前esp,然后将EFlags设置为了单步执行,意味着后面每执行一条汇编指令,都会触发单步异常,从而进入这个异常处理函数。

// scan all modules for the current instruction pointer
ScanAllModulesForAddress(CURRENT_EXCEPTION_INSTRUCTION_PTR, CURRENT_EXCEPTION_STACK_PTR);

// single step
ExceptionInfo->ContextRecord->EFlags |= SINGLE_STEP_FLAG;

当进入到合适的子函数头部中时,就会调用下面的遍历过程,计算出其对应的dll以及函数地址,和栈偏移。下面两个函数,一个遍历模块,一个遍历EAT表,当遍历出子函数时,就会用最初目标函数的的esp-现在的esp,从而得到栈偏移。

DWORD ScanModuleForAddress(BYTE* pModuleBase, char* pModuleName, NATIVE_VALUE dwAddr, NATIVE_VALUE dwStackPtr)
{
    IMAGE_DOS_HEADER* pImageDosHeader = NULL;
    IMAGE_NT_HEADERS* pImageNtHeader = NULL;
    IMAGE_SECTION_HEADER* pCurrSectionHeader = NULL;
    DWORD dwReadOffset = 0;
    BYTE* pCurrPtr = NULL;
    MEMORY_BASIC_INFORMATION MemoryBasicInfo;
    DWORD dwStackDelta = 0;

    // get dos header
    pImageDosHeader = (IMAGE_DOS_HEADER*)pModuleBase;
    if (pImageDosHeader->e_magic != 0x5A4D)
    {
        return 1;
    }

    // get nt header
    pImageNtHeader = (IMAGE_NT_HEADERS*)(pModuleBase + pImageDosHeader->e_lfanew);
    if (pImageNtHeader->Signature != IMAGE_NT_SIGNATURE)
    {
        return 1;
    }

    // loop through all sections
    for (DWORD i = 0; i < pImageNtHeader->FileHeader.NumberOfSections; i++)
    {
        // get current section header
        pCurrSectionHeader = (IMAGE_SECTION_HEADER*)((BYTE*)&pImageNtHeader->OptionalHeader + pImageNtHeader->FileHeader.SizeOfOptionalHeader + (i * sizeof(IMAGE_SECTION_HEADER)));

        // ignore executable sections
        if (pCurrSectionHeader->Characteristics & IMAGE_SCN_MEM_EXECUTE)
        {
            continue;
        }

        // scan current section for the target address
        dwReadOffset = pCurrSectionHeader->VirtualAddress;
        for (DWORD ii = 0; ii < pCurrSectionHeader->Misc.VirtualSize / sizeof(NATIVE_VALUE); ii++)
        {
            // check if the current value contains the target address
            pCurrPtr = pModuleBase + dwReadOffset;
            if (*(NATIVE_VALUE*)pCurrPtr == dwAddr)
            {
                // found target address - check memory protection
                memset((void*)&MemoryBasicInfo, 0, sizeof(MemoryBasicInfo));
                if (VirtualQuery(pCurrPtr, &MemoryBasicInfo, sizeof(MemoryBasicInfo)) != 0)
                {
                    // check if the current region is writable
                    if (MemoryBasicInfo.Protect == PAGE_EXECUTE_READWRITE || MemoryBasicInfo.Protect == PAGE_READWRITE)
                    {
                        // ensure the address list is not full
                        if (dwGlobal_AddressCount >= MAXIMUM_STORED_ADDRESS_COUNT)
                        {
                            printf("Error: Address list is full\n");
                            return 1;
                        }

                        // store current address in list
                        dwGlobal_AddressList[dwGlobal_AddressCount] = (NATIVE_VALUE)pCurrPtr;
                        dwGlobal_AddressCount++;

                        // calculate stack delta
                        dwStackDelta = (DWORD)(dwGlobal_InitialStackPtr - dwStackPtr);

                        printf("Instruction 0x%p referenced at %s!0x%p (sect: %s, virt_addr: 0x%X, stack delta: 0x%X)\n", (void*)dwAddr, pModuleName, (void*)pCurrPtr, pCurrSectionHeader->Name, dwReadOffset, dwStackDelta);
                    }
                }
            }

            // increase read offset
            dwReadOffset += sizeof(NATIVE_VALUE);
        }
    }

    return 0;
}

DWORD ScanAllModulesForAddress(NATIVE_VALUE dwAddr, NATIVE_VALUE dwStackPtr)
{
    DWORD dwPEB = 0;
    PEB* pPEB = NULL;
    LDR_DATA_TABLE_ENTRY* pCurrEntry = NULL;
    LIST_ENTRY* pCurrListEntry = NULL;
    DWORD dwEntryOffset = 0;
    char szModuleName[512];
    DWORD dwStringLength = 0;

    // get PEB ptr
#if _WIN64
    pPEB = (PEB*)__readgsqword(0x60);
#else
    pPEB = (PEB*)__readfsdword(0x30);
#endif

    // get InMemoryOrderLinks offset in structure
    dwEntryOffset = (DWORD)((BYTE*)&pCurrEntry->InLoadOrderLinks - (BYTE*)pCurrEntry);

    // get first link
    pCurrListEntry = pPEB->Ldr->InLoadOrderModuleList.Flink;

    // enumerate all modules
    for (;;)
    {
        // get ptr to current module entry
        pCurrEntry = (LDR_DATA_TABLE_ENTRY*)((BYTE*)pCurrListEntry - dwEntryOffset);

        // check if this is the final entry
        if (pCurrEntry->DllBase == 0)
        {
            // end of module list
            break;
        }

        // ignore main exe module
        if (pCurrEntry->DllBase != pGlobal_ExeBase)
        {
            // convert module name to ansi
            dwStringLength = pCurrEntry->BaseDllName.Length / sizeof(wchar_t);
            if (dwStringLength > sizeof(szModuleName) - 1)
            {
                dwStringLength = sizeof(szModuleName) - 1;
            }
            memset(szModuleName, 0, sizeof(szModuleName));
            wcstombs(szModuleName, pCurrEntry->BaseDllName.Buffer, dwStringLength);

            // scan current module
            ScanModuleForAddress((BYTE*)pCurrEntry->DllBase, szModuleName, dwAddr, dwStackPtr);
        }

        // get next module entry in list
        pCurrListEntry = pCurrListEntry->Flink;
    }

    return 0;
}

最终会将所有合适的子函数都保存到dwGlobal_AddressList[dwGlobal_AddressCount]这个全局数组中。

然后会验证一下获取到的这些子函数地址的可用性。

{
    // attempt to hook the target function at all referenced instructions found earlier
    for (DWORD i = 0; i < dwGlobal_AddressCount; i++)
    {
        printf("\nOverwriting reference: 0x%p...\n", (void*)dwGlobal_AddressList[i]);

        // reset flag
        dwGlobal_CurrHookExecuted = 0;

        // store original value
        dwGlobal_OriginalReferenceValue = *(NATIVE_VALUE*)dwGlobal_AddressList[i];

        // overwrite referenced value with placeholder value
        *(NATIVE_VALUE*)dwGlobal_AddressList[i] = OVERWRITE_REFERENCE_ADDRESS_VALUE;

        printf("Calling target function...\n");

        // execute target function
        ExecuteTargetFunction();

        // restore original value
        *(NATIVE_VALUE*)dwGlobal_AddressList[i] = dwGlobal_OriginalReferenceValue;

        // check if the hook was executed
        if (dwGlobal_CurrHookExecuted == 0)
        {
            // hook wasn't executed - ignore
            printf("Failed to catch hook\n");
        }
        else
        {
            // hook was executed - this address can be used to hook the target function
            printf("Hook caught successfully!\n");
            dwGlobal_SuccessfulHookCount++;
        }
    }

    return 0;
}

其将其函数地址修改为OVERWRITE_REFERENCE_ADDRESS_VALUE,导致这个子函数不可用,然后就会触发EXCEPTION_ACCESS_VIOLATION异常,由我们的异常处理函数来处理,主要就是修改dwGlobal_CurrHookExecuted = 1,代表测试成功。

else if (ExceptionInfo->ExceptionRecord->ExceptionCode == EXCEPTION_ACCESS_VIOLATION)
{
    // access violation - check if the eip matches the expected value
    if (CURRENT_EXCEPTION_INSTRUCTION_PTR != OVERWRITE_REFERENCE_ADDRESS_VALUE)
    {
        return EXCEPTION_CONTINUE_SEARCH;
    }

    // caught current hook successfully
    dwGlobal_CurrHookExecuted = 1;

    // restore correct instruction pointer
    CURRENT_EXCEPTION_INSTRUCTION_PTR = dwGlobal_OriginalReferenceValue;

    // continue execution
    return EXCEPTION_CONTINUE_EXECUTION;
}



总结

此hook方式的思路还是很新颖,同样也存在一些缺点,那就是只能在目标函数执行完成后,修改流程,并且可能hook的子函数万一被其他函数也调用了,这时候修改栈上的值,是否会有触发崩溃可能性呢。

通过这个工具的代码,也学到不少东西,异常处理,打硬件断点等等,可惜的是每想要hook一个API函数,都必须要去修改一下源码。



参考

https://www.x86matthew.com/view_post?id=stealth_hook

本文由知道创宇404实验室原创发布

转载,请参考转载声明,注明出处: https://www.anquanke.com/post/id/284688

安全客 - 有思想的安全新媒体

分享到:微信
+10赞
收藏
知道创宇404实验室
分享到:微信

发表评论

知道创宇404实验室

知道创宇404实验室,长期致力于Web 、IoT 、工控、区块链等领域内安全漏洞挖掘、攻防技术的研究工作,团队曾多次向国内外多家知名厂商如微软、苹果、Adobe 、腾讯、阿里、百度等提交漏洞研究成果,并协助修复安全漏洞,多次获得相关致谢,在业内享有极高的声誉。

  • 文章
  • 112
  • 粉丝
  • 69

热门推荐

内容需知
合作单位
  • 安全客
  • 安全客
Copyright © 北京奇虎科技有限公司 三六零数字安全科技集团有限公司 安全客 All Rights Reserved 京ICP备08010314号-66
