【技术分享】如何代码实现给fastboot发消息? 逆向aftool工具纪实

阅读量236427

|

发布时间 : 2017-07-04 12:16:33

https://p1.ssl.qhimg.com/t01a632b1c8230acb3c.jpg

作者:Yan_1_20

预估稿费:300RMB

投稿方式:发送邮件至linwei#360.cn,或登陆网页版在线投稿


0x00 起因

学习android安全的朋友都应该熟悉adb,fastboot这两个工具,但是其实现方式网上却没有多少资料,在下对这些知识也非好奇,一次机会对某手机的售后刷机工具aftool进行对手机刷机时,发现了它的软件包里没有fastboot.exe,但是却执行了fastboot命令,猜测他可能自己实现了fastboot.exe的功能,就想对其进行逆向分析执行fastboot的命令的核心代码。

0x01 调试环境配置

工具:IDA ,Ollydbg,Wireshark,Source Insight3

Aftool download link:

http://pan.baidu.com/s/1c0AVz9I

Adb source code download link:

http://pan.baidu.com/s/1hrVZFxU

安装AF_UPGRADE_PKG.exe后,aftool.exe为目标文件



0x02 fastboot.exe 和fastboot 模式通信的数据包

我们手机进入fastboot, 使用wireshark 抓取usb数据包,观察数据包数量以及格式

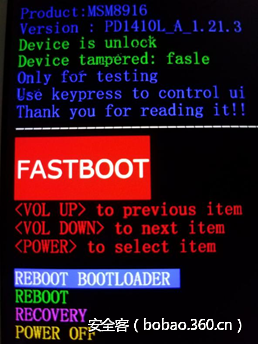

进入fastboot的方法:

[1](命令)使用 adb reboot-bootloader

[2](按键)音量减键+电源键

http://p1.qhimg.com/t010a6665a779584ee6.png

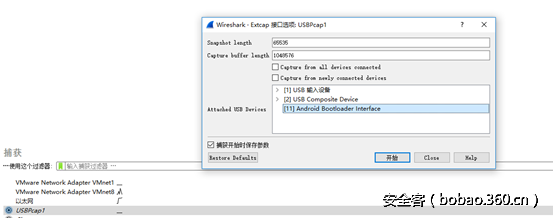

使用wireshark 捕获usb包

选择接口  android Bootloader interface

http://p6.qhimg.com/t01b93e8d3891314ff7.png

使用fastboot.exe 发送命令 fastboot reboot-bootloader

http://p7.qhimg.com/t01b857e93168ef86a9.png

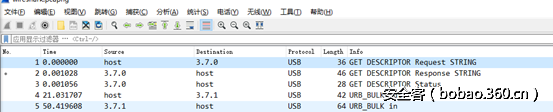

同时wireshark捕获到的数据包为:

http://p6.qhimg.com/t0172f6f05eb1a986c2.png

URB_BULK out 的数据为:

http://p1.qhimg.com/t018c4a3c1d450b2662.png

URB_BULK  in 的数据为:

http://p7.qhimg.com/t01779eee399ba3db5d.png

可以大胆猜测  URB_BULK out 就是我们使用的fastboot的命令 fastboot reboot-bootloaderURB_BULK int 就是手机端给的回应

但是上面三个特殊的数据包  和我们发的数据没有任何关系,但是看其名称”Request,Response,Status”猜测可能是fastboot的通信协议的 建立协议的数据包



0x03 aftool.exe 和fastboot 模式通信的数据包

Aftool的使用方法:

[1]切换成高通手机

[2]点击选择按钮 加X520_recovery目录下的fastboot_flash_all.bat

[3]点击下载按钮 开始执行fastboot_flash_all.bat里面的命令

对wireshark的处理方式和上面类型

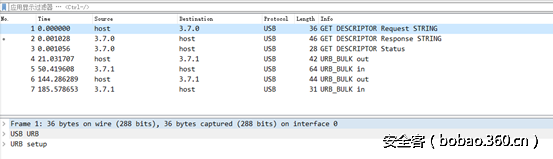

捕获的数据包如下图

http://p4.qhimg.com/t01894d9db8b9a1e93c.png

看来和fastboot的数据包格式一致,只是多发送了一条命令

现在的思路就是 Ollydbg 调试aftool ,假如执行了某个函数同时wireshark上有数据包产生那么这个函数就是通信使用的函数



0x04 逆向aftool.exe

这个工具是使用Qt编写,没有加壳子,没有加混淆,对我这种小白来说,最大的难题可能就是怎么在Qt的架构里找到”下载”按钮的处理函数了。

一开始我是没有思路的,由于不知道这个下载按钮里进行了操作,我给它下断点都不知道用什么函数下什么断点。但是想到了旁边还有一个选择按钮,加载bat文件肯定有文件读取的操作 于是对ReadFile 下了断点。果然断了下,然后通过回溯。找到了它的UI消息处理函数sub_4E22C0

最后确定了sub_4E22C0 中调用的sub_4BFD30就是”下载”按钮响应事件,

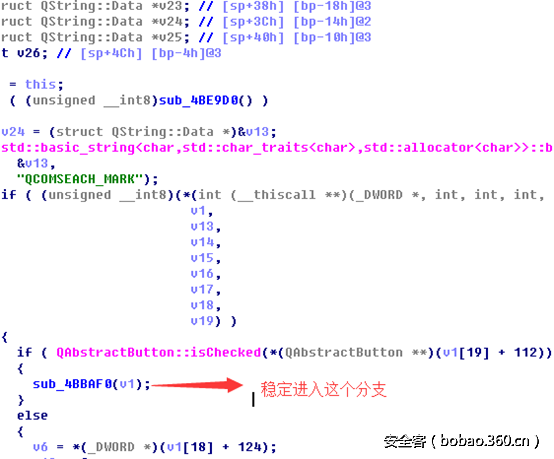

在sub_4BFD30里分支比较多 但是ollydbg跟了几次之后 发现其执行的分支稳定执行

sub_4BBAF0

http://p2.qhimg.com/t019dc419b0d54667d4.png

但是sub_4BBAF0的代码逻辑看起来很简单并没有多少值得注意的代码,但是在OD里跟着sub_4BBAF0 按F9就会跑起来,看来是这个函数没错,但是应该是错过了什么

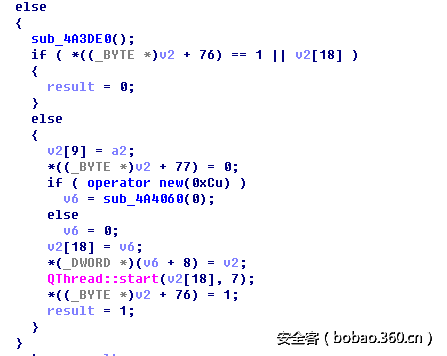

在sub_4BBAF0里的下层函数sub_4B7DB0,以及sub_4B7DB0的下层函数sub_4A3F30找到了如下代码

http://p9.qhimg.com/t0118819712eb5e9bac.png

可以的它开了一个线程

但是参考Qt  QThread::start()的用法 这里传入的参数可能是ida的没有使用类的方式调用吧

直接用ollydbg动态调到他这里来。得到了v2[18]的值742D345e(742D345e不是定值)

接着有两个函数需要F7

742D34C2    E8 51FFFFFF     call msvcr90.742D3418
742D3430    FF50 54         call dword ptr ds:[eax+0x54]

恭喜最后来到了

004A411A   .  E8 914B0000   call AFTool.004A8CB0

sub_4A8CB0就是真正处理函数

接着在ollydbg IDA里跟了跟这个函数观察

//reboot-bootloader
004A908C  |.  E8 3F190000   call AFTool.004AA9D0

发现AFTool.004AA9D0 这个函数就是给手机发数据的函数

004AA9D0 里最重要的就是下面的函数

004AAA58  |.  52            |push edx
004AAA59  |.  8B5424 34     |mov edx,dword ptr ss:[esp+0x34]         ;  AFTool.0052D4B8
004AAA5D  |.  8D4C24 18     |lea ecx,dword ptr ss:[esp+0x18]
004AAA61  |.  51            |push ecx
004AAA62  |.  50            |push eax
004AAA63  |.  8B42 08       |mov eax,dword ptr ds:[edx+0x8]
004AAA66  |.  55            |push ebp
004AAA67  |.  50            |push eax
004AAA68  |.  FF15 1CC05000 |call dword ptr ds:[<&AdbWinApi.AdbWrite>;  AdbWinAp.AdbWriteEndpointSync

堆栈如图:

esp->  09A2F978   00000008
       09A2F97C   09A2FD1C  ASCII "reboot-bootloader"
       09A2F980   00000011
       09A2F984   09A2F9A0
       09A2F988   0000027C

<注意:这个函数执行之前Wireshark里已经有了那三条特殊的数据包了,这个函数执行之后Wireshark会增加 URB_BULK out  >

所以发送命令API函数就是 AdbWinAPi.dll里的导出函数 AdbWriteEndpointSync

类似的找到了发出别的4条数据包的具体函数(其实三条特殊数据包的是一个函数发的)

AdbGetSerialNumber            ------>GET DESCRIPTOR Request STRING
------>GET DESCRIPTOR Response STRING
------>GET DESCRIPTOR Status

AdbReadEndpointSync           ------>URB_BULK in

0x05 API调用分析

现在找到了API接下来就是参考源码对这些API传入正确参数并调用了。

我们一开始假设的是前三条数据包是建立协议链接 类似socket编程accept函数返回的sock

然后AdbWriteEndpointSync 类似 send函数 使用这个sock进行通信

在源码里找了AdbWriteEndpointSync 声明(使用dll里的导出函数),调用

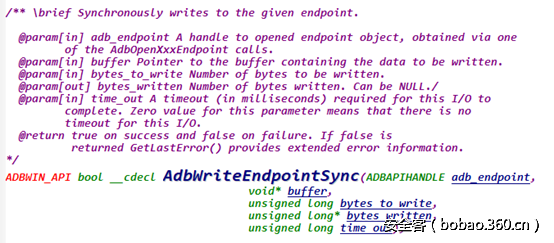

声明:

http://p9.qhimg.com/t0132e03885e9f8318d.png

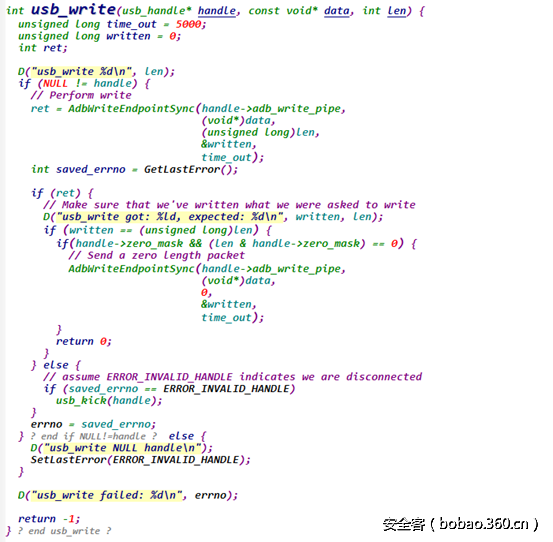

调用:

http://p1.qhimg.com/t017c08c77f2c6d74b5.png

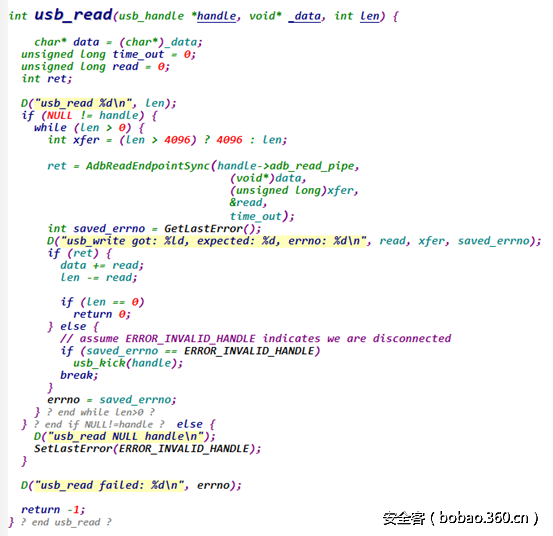

在usb_write 下面就是 usb_read的定义

http://p1.qhimg.com/t017d097bc990dde8a1.png

通过上面的代码可以看出AdbWriteEndpointSync,AdbReadEndpointSync使用的第一个参数都是同一个结构体里的不同成员变量

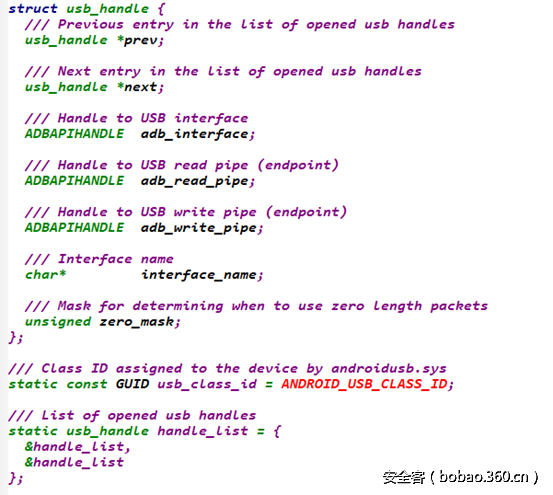

这个结构体的声明如下

http://p2.qhimg.com/t012918fa0a7b705922.png

接着关于adb_write_pipe和adb_read_pipe变量的赋值

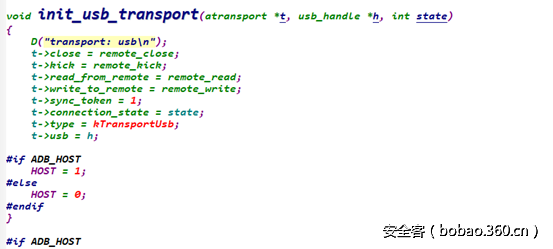

但是搜索无果,搜索调用函数usb_write的函数时,能搜索到,但是没有找到他的参数传递

http://p2.qhimg.com/t0123474feba11d76c0.png

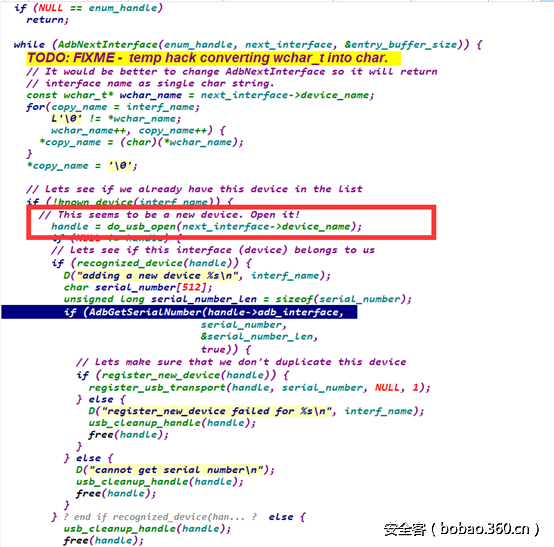

换了一个思路对AdbGetSerialNumber调用进行了寻找

http://p2.qhimg.com/t01b0f984e59dcdb1f5.png

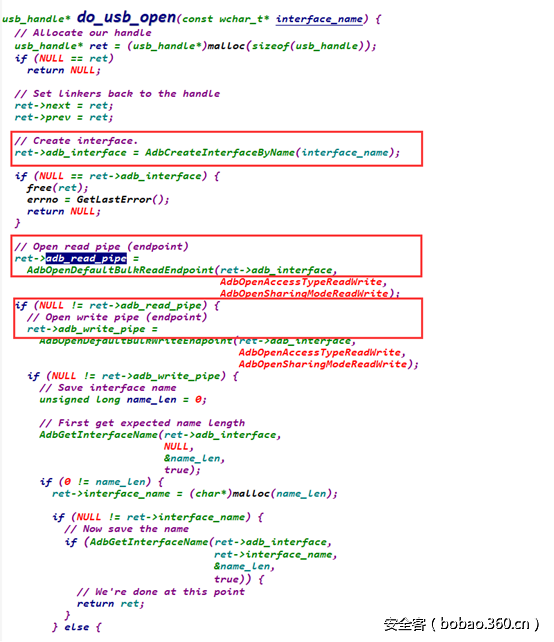

比起这个调用,上面的do_usb_open函数返回的handle则是引起了我的兴趣,其定义如下。

http://p1.qhimg.com/t0157191b6a228f4fa8.png

通过其定义可以看出,do_usb_open 里完成了对结构体usb_handle的分配已经赋值。

通过do_usb_open 返回的关键性结构体,我们就可以对AdbWriteEndpointSync 进行调用。

至于do_usb_open的参数来源 则是 上面的API AdbNextInterface进行的赋值

http://p0.qhimg.com/t01a32e5aaa5890c9c1.png

所以我们已经在源码里找到了我们需要的API的调用参数的来源。



0x06 整合代码

通过整合。得了如下的代码

<注意:一定要把AdbWinApi.dll AdbWinUsbApi.dll放到这个项目里编译>

// adb_test.cpp : 定义控制台应用程序的入口点。
//

#include "stdafx.h"
#include<windows.h>
#define  ADB_MUTEX_INITIALIZER    PTHREAD_MUTEX_INITIALIZER
typedef void* ADBAPIHANDLE;

typedef struct _AdbInterfaceInfo {
    /// Inteface's class id (see SP_DEVICE_INTERFACE_DATA for details)
    GUID          class_id;

    /// Interface flags (see SP_DEVICE_INTERFACE_DATA for details)
    unsigned long flags;

    /// Device name for the interface (see SP_DEVICE_INTERFACE_DETAIL_DATA
    /// for details)
    wchar_t       device_name[1];
} AdbInterfaceInfo;



struct usb_handle {
    /// Previous entry in the list of opened usb handles
    usb_handle *prev;

    /// Next entry in the list of opened usb handles
    usb_handle *next;

    /// Handle to USB interface
    ADBAPIHANDLE  adb_interface;

    /// Handle to USB read pipe (endpoint)
    ADBAPIHANDLE  adb_read_pipe;

    /// Handle to USB write pipe (endpoint)
    ADBAPIHANDLE  adb_write_pipe;

    /// Interface name
    char*         interface_name;

    /// Mask for determining when to use zero length packets
    unsigned zero_mask;
};

typedef enum _AdbOpenAccessType {
    /// Opens for read and write access.
    AdbOpenAccessTypeReadWrite,

    /// Opens for read only access.
    AdbOpenAccessTypeRead,

    /// Opens for write only access.
    AdbOpenAccessTypeWrite,

    /// Opens for querying information.
    AdbOpenAccessTypeQueryInfo,
} AdbOpenAccessType;

typedef enum _AdbOpenSharingMode {
    /// Shares read and write.
    AdbOpenSharingModeReadWrite,

    /// Shares only read.
    AdbOpenSharingModeRead,

    /// Shares only write.
    AdbOpenSharingModeWrite,

    /// Opens exclusive.
    AdbOpenSharingModeExclusive,
} AdbOpenSharingMode;



#define ANDROID_USB_CLASS_ID
{0xf72fe0d4, 0xcbcb, 0x407d, {0x88, 0x14, 0x9e, 0xd6, 0x73, 0xd0, 0xdd, 0x6b}};


struct  usb_ifc_info
{
    unsigned __int16 dev_vendor;
    unsigned __int16 dev_product;
    unsigned __int8 dev_class;
    unsigned __int8 dev_subclass;
    unsigned __int8 dev_protocol;
    unsigned __int8 ifc_class;
    unsigned __int8 ifc_subclass;
    unsigned __int8 ifc_protocol;
    unsigned __int8 has_bulk_in;
    unsigned __int8 has_bulk_out;
    unsigned __int8 writable;
    char serial_number[256];
    char device_path[256];
};

typedef struct _USB_DEVICE_DESCRIPTOR {
    UCHAR bLength;
    UCHAR bDescriptorType;
    USHORT bcdUSB;
    UCHAR bDeviceClass;
    UCHAR bDeviceSubClass;
    UCHAR bDeviceProtocol;
    UCHAR bMaxPacketSize0;
    USHORT idVendor;
    USHORT idProduct;
    USHORT bcdDevice;
    UCHAR iManufacturer;
    UCHAR iProduct;
    UCHAR iSerialNumber;
    UCHAR bNumConfigurations;
} USB_DEVICE_DESCRIPTOR, *PUSB_DEVICE_DESCRIPTOR;


typedef struct _USB_INTERFACE_DESCRIPTOR {
    UCHAR bLength;
    UCHAR bDescriptorType;
    UCHAR bInterfaceNumber;
    UCHAR bAlternateSetting;
    UCHAR bNumEndpoints;
    UCHAR bInterfaceClass;
    UCHAR bInterfaceSubClass;
    UCHAR bInterfaceProtocol;
    UCHAR iInterface;
} USB_INTERFACE_DESCRIPTOR, *PUSB_INTERFACE_DESCRIPTOR;

typedef int(*AdbWriteEndpointSync_)(ADBAPIHANDLE, char*, int, int *, int);
typedef void* (*AdbCreateInterfaceByName_)(const wchar_t*);
typedef void* (*AdbOpenDefaultBulkWriteEndpoint_)(ADBAPIHANDLE, AdbOpenAccessType, AdbOpenSharingMode);
typedef bool(*AdbNextInterface_)(ADBAPIHANDLE, AdbInterfaceInfo*, unsigned long* size);
typedef void* (*AdbEnumInterfaces_)(GUID, bool, bool, bool);
typedef ADBAPIHANDLE(*AdbOpenDefaultBulkReadEndpoint_)(ADBAPIHANDLE, AdbOpenAccessType, AdbOpenSharingMode);

typedef bool(*AdbGetInterfaceName_)(ADBAPIHANDLE adb_interface,
    void* buffer,
    unsigned long* buffer_char_size,
    bool ansi);


typedef bool(*AdbCloseHandle_)(ADBAPIHANDLE adb_handle);

typedef bool(*AdbGetUsbDeviceDescriptor_)(ADBAPIHANDLE, USB_DEVICE_DESCRIPTOR*);

typedef bool(*AdbGetUsbInterfaceDescriptor_)(ADBAPIHANDLE, USB_INTERFACE_DESCRIPTOR*);


typedef bool(*AdbGetSerialNumber_)(ADBAPIHANDLE, void*, unsigned long*, bool);

typedef bool(*AdbReadEndpointSync_) (ADBAPIHANDLE,
    void*,
    unsigned long,
    unsigned long*,
    unsigned long);

AdbWriteEndpointSync_ AdbWriteEndpointSync;
AdbCreateInterfaceByName_ AdbCreateInterfaceByName;
AdbOpenDefaultBulkWriteEndpoint_ AdbOpenDefaultBulkWriteEndpoint;
AdbNextInterface_ AdbNextInterface;
AdbEnumInterfaces_ AdbEnumInterfaces;
AdbOpenDefaultBulkReadEndpoint_ AdbOpenDefaultBulkReadEndpoint;
AdbGetInterfaceName_ AdbGetInterfaceName;
AdbCloseHandle_ AdbCloseHandle;
AdbGetUsbDeviceDescriptor_ AdbGetUsbDeviceDescriptor;
AdbGetUsbInterfaceDescriptor_ AdbGetUsbInterfaceDescriptor;
AdbGetSerialNumber_ AdbGetSerialNumber;
AdbReadEndpointSync_ AdbReadEndpointSync;

usb_handle* do_usb_open(const wchar_t* interface_name);
void usb_cleanup_handle(usb_handle* handle);
int recognized_device(usb_handle* handle);
int main()
{
    int d;
    char getvar[] = "getvar:product";
    char rebootbl[] = "reboot-bootloader";
    HMODULE a = LoadLibrary(L"AdbWinApi.dll");

    AdbWriteEndpointSync = (AdbWriteEndpointSync_)GetProcAddress(a, "AdbWriteEndpointSync");
    AdbCreateInterfaceByName = (AdbCreateInterfaceByName_)GetProcAddress(a, "AdbCreateInterfaceByName");
    AdbOpenDefaultBulkWriteEndpoint = (AdbOpenDefaultBulkWriteEndpoint_)GetProcAddress(a, "AdbOpenDefaultBulkWriteEndpoint");
    AdbNextInterface = (AdbNextInterface_)GetProcAddress(a, "AdbNextInterface");
    AdbEnumInterfaces = (AdbEnumInterfaces_)GetProcAddress(a, "AdbEnumInterfaces");
    AdbOpenDefaultBulkReadEndpoint = (AdbOpenDefaultBulkReadEndpoint_)GetProcAddress(a, "AdbOpenDefaultBulkReadEndpoint");
    AdbGetInterfaceName = (AdbGetInterfaceName_)GetProcAddress(a, "AdbGetInterfaceName");
    AdbCloseHandle = (AdbCloseHandle_)GetProcAddress(a, "AdbCloseHandle");

    AdbGetUsbDeviceDescriptor = (AdbGetUsbDeviceDescriptor_)GetProcAddress(a, "AdbGetUsbDeviceDescriptor");
    AdbGetUsbInterfaceDescriptor = (AdbGetUsbInterfaceDescriptor_)GetProcAddress(a, "AdbGetUsbInterfaceDescriptor");
    AdbGetSerialNumber = (AdbGetSerialNumber_)GetProcAddress(a, "AdbGetSerialNumber");
    AdbReadEndpointSync = (AdbReadEndpointSync_)GetProcAddress(a, "AdbReadEndpointSync");

    usb_handle* handle = NULL;
    char entry_buffer[2048];
    char interf_name[2048];
    char read[2048];
    int ArgList;
    AdbInterfaceInfo* next_interface = (AdbInterfaceInfo*)(&entry_buffer[0]);
    unsigned long entry_buffer_size = sizeof(entry_buffer);
    char* copy_name;
    static const GUID usb_class_id = ANDROID_USB_CLASS_ID;
    // Enumerate all present and active interfaces.
    ADBAPIHANDLE enum_handle =
        AdbEnumInterfaces(usb_class_id, true, true, true);

    while (AdbNextInterface(enum_handle, next_interface, &entry_buffer_size)) {

        const wchar_t* wchar_name = next_interface->device_name;
        for (copy_name = interf_name;
        L'' != *wchar_name;
            wchar_name++, copy_name++) {
            *copy_name = (char)(*wchar_name);
        }
        *copy_name = '';
        handle = do_usb_open(next_interface->device_name);
        if (recognized_device(handle)) {
            printf("adding a new device %sn", interf_name);
            char serial_number[512];
            unsigned long serial_number_len = sizeof(serial_number);
            if (AdbGetSerialNumber(handle->adb_interface, serial_number, &serial_number_len, true))
            {

                memset(read, 0, sizeof(read));
                AdbWriteEndpointSync(handle->adb_write_pipe, getvar, strlen(rebootbl), &d, 0x26c);

                Sleep(3000);

                AdbReadEndpointSync(handle->adb_read_pipe, read, 4096, (unsigned long*)&ArgList, 0x26c);

                read[strlen(read)]='';
                printf("%s:n",read);


                memset(read, 0, sizeof(read));
                AdbWriteEndpointSync(handle->adb_write_pipe, rebootbl, strlen(rebootbl), &d, 0x26c);

                Sleep(3000);

                AdbReadEndpointSync(handle->adb_read_pipe, read, 4096, (unsigned long*)&ArgList, 0x26c);
                read[strlen(read)] = '';
                printf("%s:n", read);



            }
        }
    }
    //AdbWriteEndpointSync(ret->adb_write_pipe, rebootbl, strlen(rebootbl), &d, 0x26c);
    return 0;
}


int recognized_device(usb_handle* handle) {
    if (NULL == handle)
        return 0;

    // Check vendor and product id first
    USB_DEVICE_DESCRIPTOR device_desc;

    if (!AdbGetUsbDeviceDescriptor(handle->adb_interface,
        &device_desc)) {
        return 0;
    }

    // Then check interface properties
    USB_INTERFACE_DESCRIPTOR interf_desc;

    if (!AdbGetUsbInterfaceDescriptor(handle->adb_interface,
        &interf_desc)) {
        return 0;
    }

    // Must have two endpoints
    if (2 != interf_desc.bNumEndpoints) {
        return 0;
    }

    //if (is_adb_interface(device_desc.idVendor, device_desc.idProduct,
    //  interf_desc.bInterfaceClass, interf_desc.bInterfaceSubClass, interf_desc.bInterfaceProtocol)) {

    //  if (interf_desc.bInterfaceProtocol == 0x01) {
    //      AdbEndpointInformation endpoint_info;
    //      // assuming zero is a valid bulk endpoint ID
    //      if (AdbGetEndpointInformation(handle->adb_interface, 0, &endpoint_info)) {
    //          handle->zero_mask = endpoint_info.max_packet_size - 1;
    //      }
    //  }

    return 1;
}


void usb_cleanup_handle(usb_handle* handle) {
    if (NULL != handle) {
        if (NULL != handle->interface_name)
            free(handle->interface_name);
        if (NULL != handle->adb_write_pipe)
            AdbCloseHandle(handle->adb_write_pipe);
        if (NULL != handle->adb_read_pipe)
            AdbCloseHandle(handle->adb_read_pipe);
        if (NULL != handle->adb_interface)
            AdbCloseHandle(handle->adb_interface);

        handle->interface_name = NULL;
        handle->adb_write_pipe = NULL;
        handle->adb_read_pipe = NULL;
        handle->adb_interface = NULL;
    }
}

usb_handle* do_usb_open(const wchar_t* interface_name) {
    // Allocate our handle
    usb_handle* ret = (usb_handle*)malloc(sizeof(usb_handle));
    if (NULL == ret)
        return NULL;

    // Set linkers back to the handle
    ret->next = ret;
    ret->prev = ret;

    // Create interface.
    ret->adb_interface = AdbCreateInterfaceByName(interface_name);

    //if (NULL == ret->adb_interface) {
    //  free(ret);
    //  errno = GetLastError();
    //  return NULL;
    //}

    // Open read pipe (endpoint)



    ret->adb_read_pipe =
        AdbOpenDefaultBulkReadEndpoint(ret->adb_interface,
            AdbOpenAccessTypeReadWrite,
            AdbOpenSharingModeReadWrite);

    // Open write pipe (endpoint)
    ret->adb_write_pipe =
        AdbOpenDefaultBulkWriteEndpoint(ret->adb_interface,
            AdbOpenAccessTypeReadWrite,
            AdbOpenSharingModeReadWrite);

    // Save interface name
    unsigned long name_len = 0;

    // First get expected name length
    AdbGetInterfaceName(ret->adb_interface,
        NULL,
        &name_len,
        true);
    if (0 != name_len) {
        ret->interface_name = (char*)malloc(name_len);

        if (NULL != ret->interface_name) {
            // Now save the name
            if (AdbGetInterfaceName(ret->adb_interface,
                ret->interface_name,
                &name_len,
                true)) {
                // We're done at this point
                return ret;
            }
        }
        else {
            SetLastError(ERROR_OUTOFMEMORY);
        }
    }



    // Something went wrong.
    int saved_errno = GetLastError();
    usb_cleanup_handle(ret);
    free(ret);
    SetLastError(saved_errno);

    return NULL;
}

0x07 代码运行结果

http://p9.qhimg.com/t01879b9fc0fc7aa39e.png

其中 OKAYMSM8916是其CUP型号,为fastboot命令 getvar product的返回,OKAY是reboot-bootloader的返回,并且手机重启进入fastboot模式。说明得到的代码是完全能执行命令的核心API。



本文由Yan_1_20原创发布

转载,请参考转载声明,注明出处: https://www.anquanke.com/post/id/86369

安全客 - 有思想的安全新媒体

分享到:微信
+11赞
收藏
Yan_1_20
分享到:微信

发表评论

内容需知
  • 投稿须知
  • 转载须知
  • 官网QQ群8:819797106
  • 官网QQ群3:830462644(已满)
  • 官网QQ群2:814450983(已满)
  • 官网QQ群1:702511263(已满)
合作单位
  • 安全客
  • 安全客
Copyright © 北京奇虎科技有限公司 360网络攻防实验室 安全客 All Rights Reserved 京ICP备08010314号-66
