Android SSL Re-Pinning
在Android应用中可以找到两种SSL Pinning的实现:自己实现的和官方推荐的。前者通常使用单个方法,执行所有证书检查(可能使用自定义库),返回一个布尔值来判断是否正常。这意味着我们可以通过识别进行判断的关键函数,然后hook它的返回值来轻松地绕过此方法。针对这种检测方法,可以使用类似以下的Frida JavaScript脚本:
hook关键函数,使他永远返回True, 绕过检查。
不过当SSL Pinning是根据Android的官方文档实现时,事情变得更加艰难。不过现在还是有很多优秀的解决方案,比如定制的Android图像,底层框架,使socket.relaxsslcheck = yes等等。几乎每个尝试绕过SSL Pinning的方案都是基于操纵SSLContext。我们可以用Frida操纵SSLContext吗?我们想要的是一个通用的方法,我们想用Frida JavaScript脚本来实现这个目的。
这里的想法是根据官方文档的建议来实现的,所以我们将SSL Pinning Java代码移植到了Frida JavaScript。
它是这样工作的:
1. 从设备加载我们的 CA证书;
2. 创建包含我们信任的CA证书的KeyStore;
3. 创建一个TrustManager,使它信任我们的KeyStore中的CA证书。
当应用程序初始化其SSLContext时,我们会劫持SSLContext.init()方法,当它被调用时,我们使用我们之前准备的TrustManager , 把它设置为第二个参数。( SSLContext.init(KeyManager,TrustManager,SecuRandom) )。
这样我们就使应用程序信任我们的CA了。
执行示例:
$ adb push burpca-cert-der.crt /data/local/tmp/cert-der.crt
$ adb shell "/data/local/tmp/frida-server &"
$ frida -U -f it.app.mobile -l frida-android-repinning.js --no-pause
[…]
[USB::Samsung GT-31337::['it.app.mobile']]->
[.] Cert Pinning Bypass/Re-Pinning
[+] Loading our CA...
[o] Our CA Info: CN=PortSwigger CA, OU=PortSwigger CA, O=PortSwigger, L=PortSwigger, ST=PortSwigger, C=PortSwigger
[+] Creating a KeyStore for our CA...
[+] Creating a TrustManager that trusts the CA in our KeyStore...
[+] Our TrustManager is ready...
[+] Hijacking SSLContext methods now...
[-] Waiting for the app to invoke SSLContext.init()...
[o] App invoked javax.net.ssl.SSLContext.init...
[+] SSLContext initialized with our custom TrustManager!
[o] App invoked javax.net.ssl.SSLContext.init...
[+] SSLContext initialized with our custom TrustManager!
[o] App invoked javax.net.ssl.SSLContext.init...
[+] SSLContext initialized with our custom TrustManager!
[o] App invoked javax.net.ssl.SSLContext.init...
[+] SSLContext initialized with our custom TrustManager!
上述示例,应用程序调用了四次SSLContext.init,这意味着它验证了四个不同的证书(其中两个被第三方跟踪库使用)。
Frida&Android: https://www.frida.re/docs/android/
/*

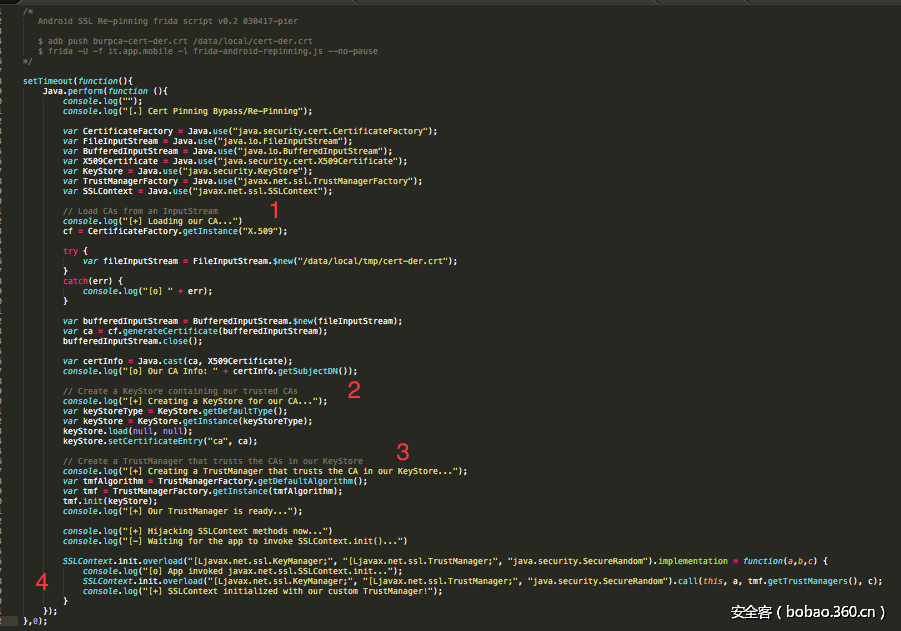

Android SSL Re-pinning frida script v0.2 030417-pier
$ adb push burpca-cert-der.crt /data/local/tmp/cert-der.crt
$ frida -U -f it.app.mobile -l frida-android-repinning.js --no-pause
https://techblog.mediaservice.net/2017/07/universal-android-ssl-pinning-bypass-with-frida/
*/
setTimeout(function(){
Java.perform(function (){
console.log("");
console.log("[.] Cert Pinning Bypass/Re-Pinning");
var CertificateFactory = Java.use("java.security.cert.CertificateFactory");
var FileInputStream = Java.use("java.io.FileInputStream");
var BufferedInputStream = Java.use("java.io.BufferedInputStream");
var X509Certificate = Java.use("java.security.cert.X509Certificate");
var KeyStore = Java.use("java.security.KeyStore");
var TrustManagerFactory = Java.use("javax.net.ssl.TrustManagerFactory");
var SSLContext = Java.use("javax.net.ssl.SSLContext");
// Load CAs from an InputStream
console.log("[+] Loading our CA...")
cf = CertificateFactory.getInstance("X.509");
try {
var fileInputStream = FileInputStream.$new("/data/local/tmp/cert-der.crt");
}
catch(err) {
console.log("[o] " + err);
}
var bufferedInputStream = BufferedInputStream.$new(fileInputStream);
var ca = cf.generateCertificate(bufferedInputStream);
bufferedInputStream.close();
var certInfo = Java.cast(ca, X509Certificate);
console.log("[o] Our CA Info: " + certInfo.getSubjectDN());
// Create a KeyStore containing our trusted CAs
console.log("[+] Creating a KeyStore for our CA...");
var keyStoreType = KeyStore.getDefaultType();
var keyStore = KeyStore.getInstance(keyStoreType);
keyStore.load(null, null);
keyStore.setCertificateEntry("ca", ca);
// Create a TrustManager that trusts the CAs in our KeyStore
console.log("[+] Creating a TrustManager that trusts the CA in our KeyStore...");
var tmfAlgorithm = TrustManagerFactory.getDefaultAlgorithm();
var tmf = TrustManagerFactory.getInstance(tmfAlgorithm);
tmf.init(keyStore);
console.log("[+] Our TrustManager is ready...");
console.log("[+] Hijacking SSLContext methods now...")
console.log("[-] Waiting for the app to invoke SSLContext.init()...")
SSLContext.init.overload("[Ljavax.net.ssl.KeyManager;", "[Ljavax.net.ssl.TrustManager;", "java.security.SecureRandom").implementation = function(a,b,c) {
console.log("[o] App invoked javax.net.ssl.SSLContext.init...");
SSLContext.init.overload("[Ljavax.net.ssl.KeyManager;", "[Ljavax.net.ssl.TrustManager;", "java.security.SecureRandom").call(this, a, tmf.getTrustManagers(), c);
console.log("[+] SSLContext initialized with our custom TrustManager!");
}
});
},0);
